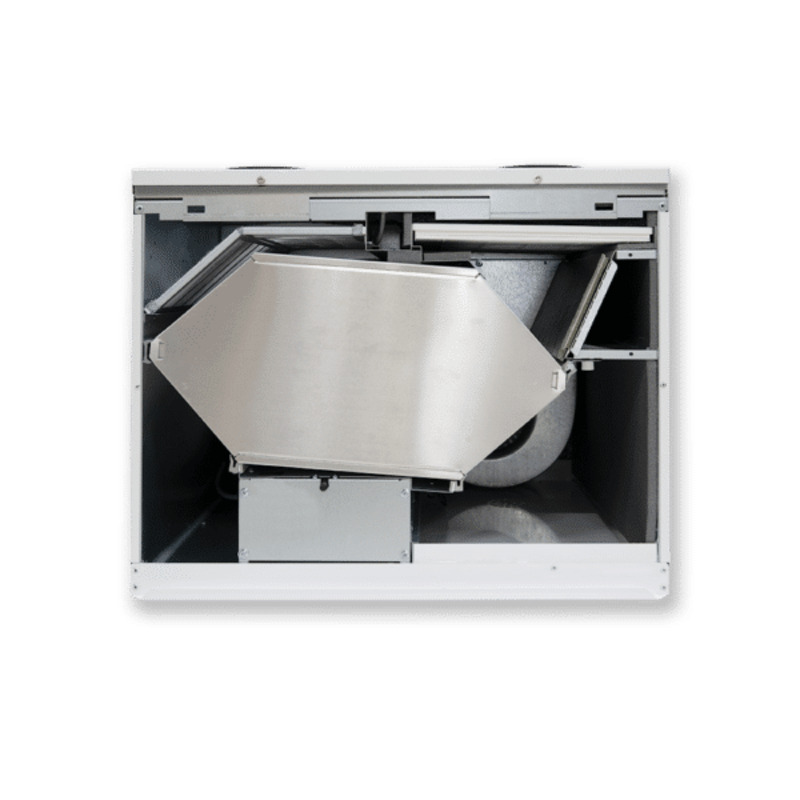

HEAT RECOVERY UNIT PARMAIR 100 CH R
Product code
7914024
Only 45 cm tall, extremely quiet, and energy-efficient ventilation unit for small and medium-sized apartments. Maximum floor area 150 m², airflow 110 l/s. Delivery does not include a controller.
Features- A+ energy efficiency class and 83% efficiency
- CO2 and humidity sensor
- Integrated Parmair SmartAir™ automatic demand-controlled ventilation
- Frost protection with bypass technology
- Control via kitchen panel, separate controller, or MAC controller
- Modbus connectivity ready
- Removable integrated water trap
- Mounting plate for new installations with 4xŘ125mm or 4xŘ160mm holes (ceiling or wall mounting)
- Can replace many old units without duct modifications using the Parmair Adapter™ device adapter.
Product details
Technical specifications
Product class (ETIM)Heat recovery unit (residential) (EC011285)
Heat recovery byOther
Housing materialSteel
Material heat exchangerAluminium
Suitable for wall mountingno
Suitable for ceiling mountingyes
Suitable for floor mountingno
Left/right orientation reversibleno
Max. air volume at 50 Pa396 m³/h
Power consumption at max. air volume at 100 Pa0.22 kW
Type of motorElectronically commutated (EC)
Voltage230 V
Frequency50 Hz
Number of phases1
Fuse size of the device10 A
With thermal overload protectionyes
Product codes
SAPDAY924
HPAC7914024
PLC7914024
GTIN/EAN6430081080242
Manufacturer part numberPA100200
Vendor material number7914024
Basic information
Package measurements (L x W x H)600 x 650 x 530 mm
Package volume206.7 l
Package weight41 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101602
BrandPARMAIR
VendorPARMAIR ILMANVAIHTO OY
The country of origin stated by the supplierFinland
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)172.2
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000426
