HEAT RECOVERY UNIT PARMAIR 170 MAC L
Product code
7914033
Quiet and energy-efficient ventilation unit for medium to large homes. Maximum floor area 300 m², air flow 165 l/s. Delivery includes MAC touch screen controller.
Features
- A+ energy efficiency class and 86% efficiency

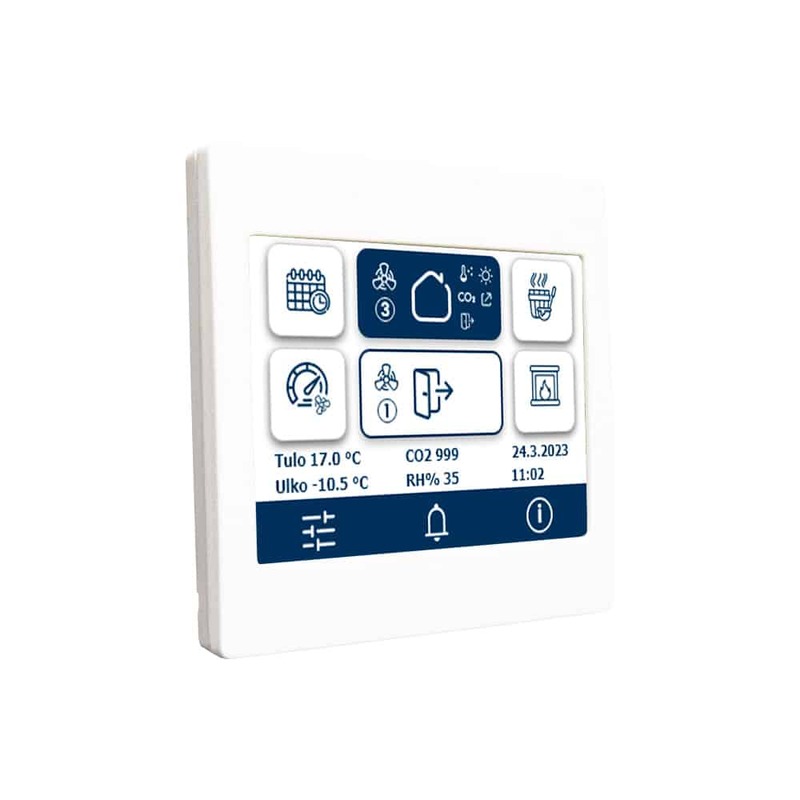

- MAC touch screen controller with CO2 and humidity sensor
- Integrated Parmair SmartAir™ automatic demand-controlled ventilation
- Automatic home/away mode
- Automatic humidity boost
- Automatic CO2 boost
- Automatic summer cooling with power control (bypass/cold recovery)
- Automatic energy-saving winter mode with power control
- Fireplace interlock function
- Humidity boost bypass function
- Parmair eMAC remote control capability
- Modbus interface ready
- Removable integrated water trap
- Mounting plate for new constructions: 6xŘ160mm or 4xŘ200mm (ceiling or wall mounting)
- Parmair Adapter™ device adapter allows replacement of many old units without duct modifications.
Product details
Technical specifications
Product class (ETIM)Heat recovery unit (residential) (EC011285)
Heat recovery byOther
Housing materialSteel
Material heat exchangerAluminium
Suitable for wall mountingyes
Suitable for ceiling mountingyes
Suitable for floor mountingno
Left/right orientation reversibleno
Max. air volume at 50 Pa583 m³/h
Power consumption at max. air volume at 100 Pa0.17 kW
Type of motorElectronically commutated (EC)
Voltage230 V
Frequency50 Hz
Number of phases1
Fuse size of the device10 A
With thermal overload protectionyes
Product codes
SAPDAY933
HPAC7914033
PLC7914033
GTIN/EAN6430081080334
Manufacturer part numberPA170105
Vendor material number7914033
Basic information
Package measurements (L x W x H)590 x 810 x 900 mm
Package volume430.11 l
Package weight55 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101602
BrandPARMAIR
VendorPARMAIR ILMANVAIHTO OY
The country of origin stated by the supplierFinland
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)231.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000426
