HEAT RECOVERY UNIT PARMAIR 220 MAC L
Product code
7914037
Quiet and energy-efficient ventilation unit for large apartments, commercial spaces, or storage areas. Maximum area over 300 m², airflow 220 l/s. Delivery includes MAC touch screen controller.
Features
- A+ energy efficiency class and 86% efficiency

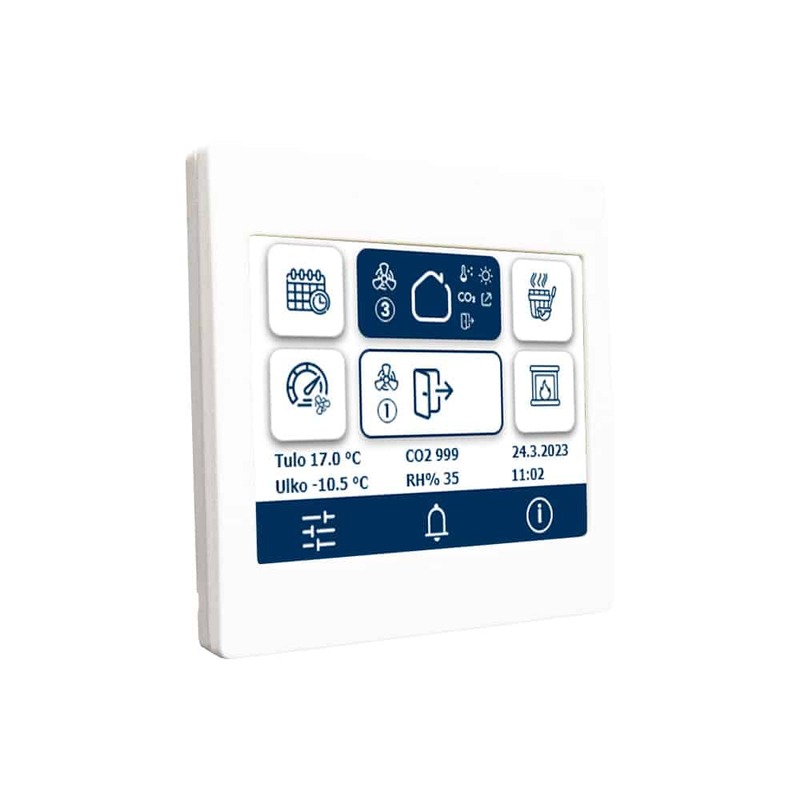

- MAC touch screen controller with CO2 and humidity sensor
- Integrated Parmair SmartAir™ automatic demand-controlled ventilation
- Automatic home/away mode
- Automatic humidity boost
- Automatic CO2 boost
- Automatic summer cooling with power regulation (bypass/cool recovery)
- Automatic energy-saving winter mode with power regulation
- Fireplace interlock function
- Humidity boost bypass function
- Frost protection with bypass technology
- Parmair eMAC remote control capability
- Modbus interface ready
- Mounting plate for new constructions: 4xØ200mm or 4xØ250mm (ceiling or wall mounting)
Product details
Technical specifications
Product class (ETIM)Heat recovery unit (residential) (EC011285)
Heat recovery byOther
Housing materialSteel
Material heat exchangerAluminium
Suitable for wall mountingyes
Suitable for ceiling mountingyes
Suitable for floor mountingyes
Left/right orientation reversibleno
Max. air volume at 50 Pa792 m³/h
Power consumption at max. air volume at 100 Pa0.33 kW
Type of motorElectronically commutated (EC)
Voltage230 V
Frequency50 Hz
Number of phases1
Fuse size of the device16 A
With thermal overload protectionyes
Product codes
SAPDAY937
HPAC7914037
PLC7914037
GTIN/EAN6430081080372
Manufacturer part numberPA22005
Vendor material number7914037
Basic information
Package measurements (L x W x H)730 x 1000 x 890 mm
Package volume649.7 l
Package weight90 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101602
BrandPARMAIR
VendorPARMAIR ILMANVAIHTO OY
The country of origin stated by the supplierFinland
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)378.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000426
