HEAT RECOVERY UNIT PARMAIR 80 CH L
Product code
7914019
Small ventilation unit for apartments that fits inside a 60 cm cabinet. Maximum floor area 130 m², airflow 93 l/s. Control via range hood or separate controller. Delivery does not include controller.
Features- A+ energy efficiency class and 83% efficiency
- CO2 and humidity sensor
- Integrated Parmair SmartAir™ automatic demand-controlled ventilation
- Frost protection with bypass technology

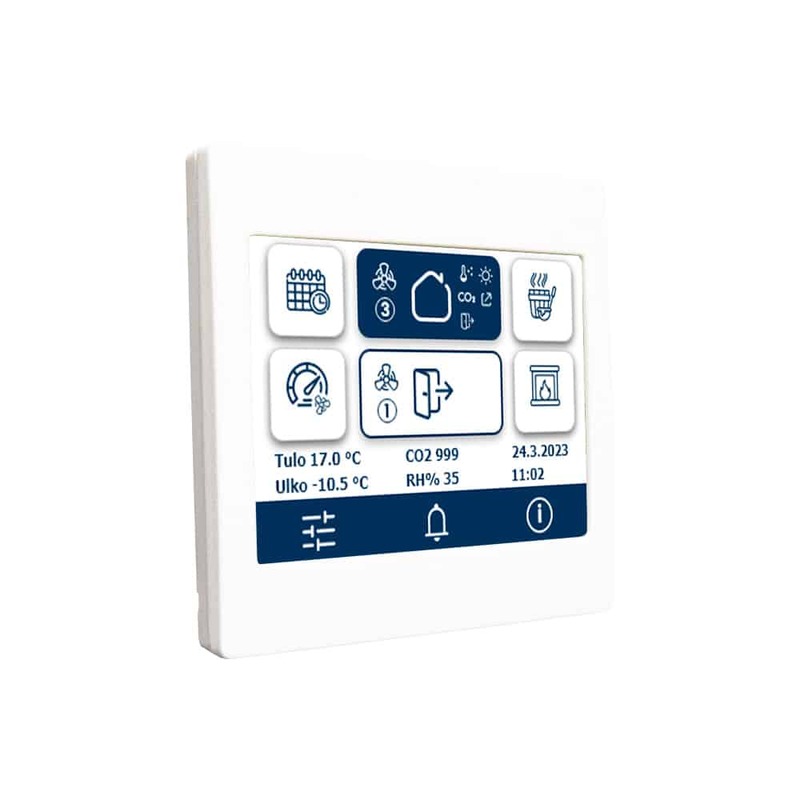

- Control via range hood, separate controller, or MAC controller
- Modbus connectivity ready
- New building mounting plate with 4xŘ125mm or 4xŘ160mm openings (ceiling or wall mounting)
- Parmair Adapter™ retrofit mounting plate allows replacement of multiple old units without duct modifications.
Product details
Technical specifications
Product class (ETIM)Heat recovery unit (residential) (EC011285)
Heat recovery byOther
Housing materialSteel
Material heat exchangerAluminium
Suitable for wall mountingyes
Suitable for ceiling mountingyes
Suitable for floor mountingno
Left/right orientation reversibleno
Max. air volume at 50 Pa335 m³/h
Power consumption at max. air volume at 100 Pa0.17 kW
Type of motorElectronically commutated (EC)
Voltage230 V
Frequency50 Hz
Number of phases1
Fuse size of the device10 A
With thermal overload protectionyes
Product codes
SAPDAY919
HPAC7914019
PLC7914019
GTIN/EAN6430081080198
Manufacturer part numberPA80205
Vendor material number7914019
Basic information
Package measurements (L x W x H)530 x 630 x 575 mm
Package volume191.992 l
Package weight36 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101602
BrandPARMAIR
VendorPARMAIR ILMANVAIHTO OY
The country of origin stated by the supplierFinland
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)151.2
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000426
