HEAT RECOVERY UNIT PARMAIR REXO 150 MAC
Product code
7914042
Attic-style ventilation unit for small and medium-sized apartments. Replaces Rexovent RDAA units. Maximum floor area 190 m², air volume 143 l/s. Delivery includes MAC touch screen controller.
Features
- A energy efficiency class and 85 % efficiency
- Polyurethane insulation 50 mm on the top and 30 mm on the sides

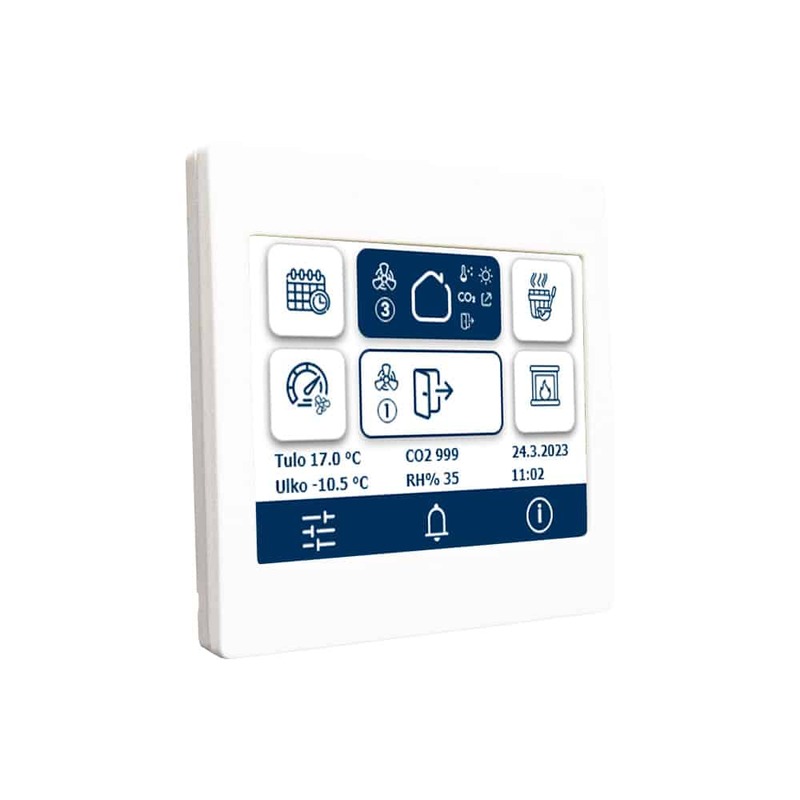

- MAC touch screen controller with CO2 and humidity sensor
- Integrated Parmair SmartAir™ automatic demand-controlled ventilation
- Automatic home/away function
- Automatic humidity boost
- Automatic CO2 boost
- Automatic summer cooling with power control (bypass/cool recovery)
- Automatic energy-saving winter mode with power control
- Automatic frost protection with bypass technology
- Fire alarm shutdown function
- Humidity boost bypass function
- Parmair eMAC remote control capability
- Direct replacement of Rexovent RDAA iv unit without ductwork modifications.
Product details
Technical specifications
Product class (ETIM)Heat recovery unit (residential) (EC011285)
Heat recovery byOther
Housing materialSteel
Material heat exchangerAluminium
Suitable for wall mountingno
Suitable for ceiling mountingno
Suitable for floor mountingyes
Left/right orientation reversibleno
Max. air volume at 50 Pa515 m³/h
Power consumption at max. air volume at 100 Pa0.27 kW
Type of motorElectronically commutated (EC)
Voltage230 V
Frequency50 Hz
Number of phases1
Fuse size of the device16 A
With thermal overload protectionyes
Product codes
SAPDAY942
HPAC7914042
PLC7914042
GTIN/EAN6430081080426
Manufacturer part numberPAREX3
Vendor material number7914042
Basic information
Package measurements (L x W x H)1020 x 570 x 490 mm
Package volume284.886 l
Package weight50 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101602
BrandPARMAIR
VendorPARMAIR ILMANVAIHTO OY
The country of origin stated by the supplierFinland
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)210.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000426
