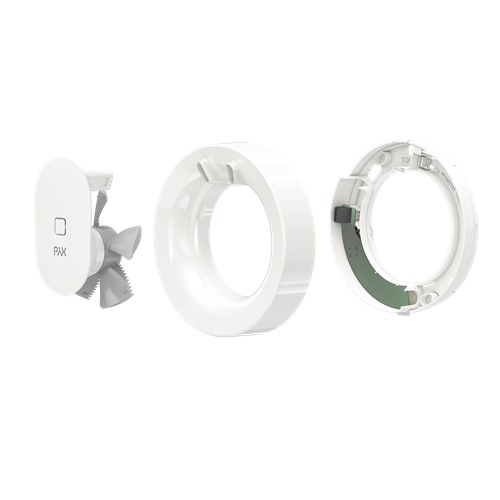

FAN PACKAGE PAX 1555-1 CALIMA WHITE
Product code
8510046
The Pax Calima exhaust air package is a complete exhaust air package that includes a fan, two wall pipes with a diameter of 100 mm, a backdraft damper, and a white exterior grille. The exhaust air package is designed to be installed directly into an exterior wall with a thickness of 60–320 mm. The recommended wall penetration diameter is 110 mm.
Calima features- Fully automatic, controls via app
- 17–20 dB(A) at 3 m
- 110 m³/h free airflow
- Energy consumption max. 4 W
- Boost function
- Separate 12 V input.
Product details
Technical specifications
Product class (ETIM)Ventilator for in-house bathrooms and kitchens (EC001141)
Nominal width177 mm
Volume flow110 m³/h
ColourWhite
Medium temperature0.0 - 50.0 °C
Mounting methodSurface mounted
Rated voltage230 V
Mains frequency50 Hz
Assembly arrangementOther
Rotational speed2400 1/min
Housing materialPlastic
DirectionAxial
Degree of protection (IP)IP44
Noise emission20 dB(A) re 1 pW
With connection setno
Width177 mm
Product codes
SAPCED690
HPAC8040652
STK8510046
PLC8510046
GTIN/EAN7391477155519
Manufacturer part number1555-1
Vendor material number1555-1
Basic information
Package measurements (L x W x H)250 x 180 x 220 mm
Package volume9.9 l
Package weight1.12 kg
Base uniteach
Package units1 / 54
Package contents–
UNSPSC42272219
BrandPAX
VendorVOLUTION SWEDEN AB
Documents (12)
Certificates
Brochures & documents
Environment and safety
Features
HumidistatYes
Power (W)4
Occupancy sensorYes
emissions calculated according to EN 15821:2010Yes
