HRU-UNIT PAX PAX EOS 100H+

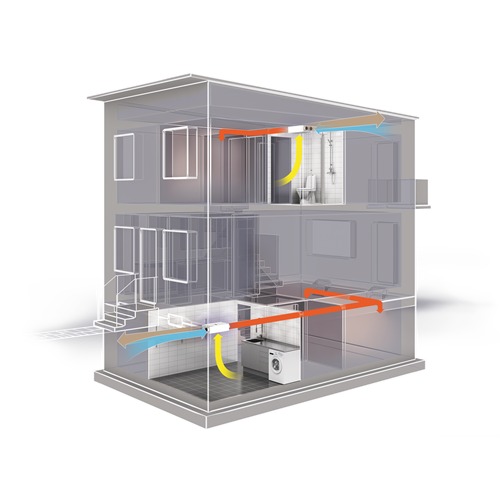

Pax Eos 100H+ is equipped with a plug-in cable. It is an easily retrofittable ventilation unit with heat recovery to enhance natural ventilation locally. One Pax Eos 100H unit handles ventilation for one floor (approximately 70-80 m²). The Pax Eos 100H is equipped with a preheater for supply air. Also available is the Pax Eos 100H designed for concealed installation (LVI 7937301). The Eos is excellently suited for Finnish homes from the 1950s and 1960s due to their base solutions. The heat recovery efficiency of the Pax Eos, designed for Nordic conditions, is nearly 80%. The Eos is fully automatic, with required settings controlled via a remote. Exhaust air is drawn through a grille on the side of the Eos unit and expelled through the heat recovery core. No ducting is therefore needed for the exhaust air. The incoming clean air duct does not need insulation if the unit is installed next to an exterior wall. It can be mounted either on the ceiling or the wall. The ducts carrying the heat-recovered supply air run through interior spaces to other rooms, so they also do not require insulation. There is also no risk of air leakage, as the air passages through rooms are within interior walls. The Pax Eos is therefore very easy and quick to install, as the installation takes place indoors. Duct runs are often short, so the Eos is suitable also for homes with low ceiling heights and homes where ducts cannot be installed in the ceiling. The Pax Eos 100H unit includes a supply air preheater to ensure that the temperature of incoming air is comfortable. The Pax Eos is compact. Its length without pipe connections is only 595 mm, height 340 mm, and depth 191 mm. The unit weighs 9.5 kg. The Pax Eos recovers heat from the house and reuses it. The exhaust air blown out through the Pax Eos heats the incoming fresh outdoor air via a cross-flow heat exchanger without mixing them, so most of the supply air is already preheated. This is economical and significantly improves living comfort. The LTO efficiency is up to 80 percent. The Pax Eos is automatic, so its settings do not need frequent adjustment. Required settings are easily made using the included remote control. The ventilation capacity can be adjusted to three different levels: 30, 52, or 78 cubic meters per hour. A general rule is that indoor air should be replaced every other hour. The Pax Eos is a smart and versatile ventilation unit. It features a humidity sensor that automatically increases ventilation during activities such as showering or cooking. When the room is again dry, the ventilation capacity returns to the preset level. Ventilation capacity 78 m³/h, sound level min-max 18-35 dB(A) at 3 m, power consumption 3.5-25 W (preheater max 375 W), enclosure class IP24, LTO efficiency 75-80%. This product description is an automated translation of the original Finnish description.
