BY122P G5 30000lm 840 ON/OFF IP65 WB

Product code
4351314

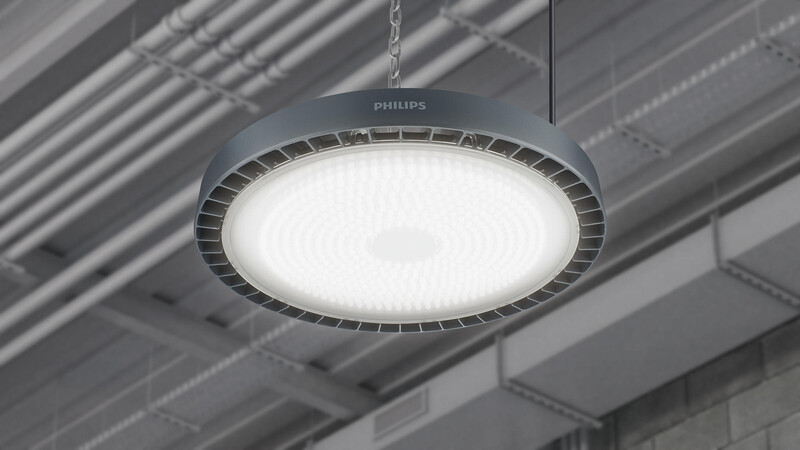

Philips CoreLine Highbay high bay light

Features
  • Luminous flux: 30,000 lm
  • Power: 192 W
  • Luminous efficacy: 160 lm/W
  • Color temperature: 4000 K
  • Color rendering index: Ra80
  • Beam angle: 85°
  • Wide beam
  • ON/OFF
  • Non-dimmable
  • IP rating: IP65
  • IK rating: IK08
  • Operating temperature: -30 ... +50 °C

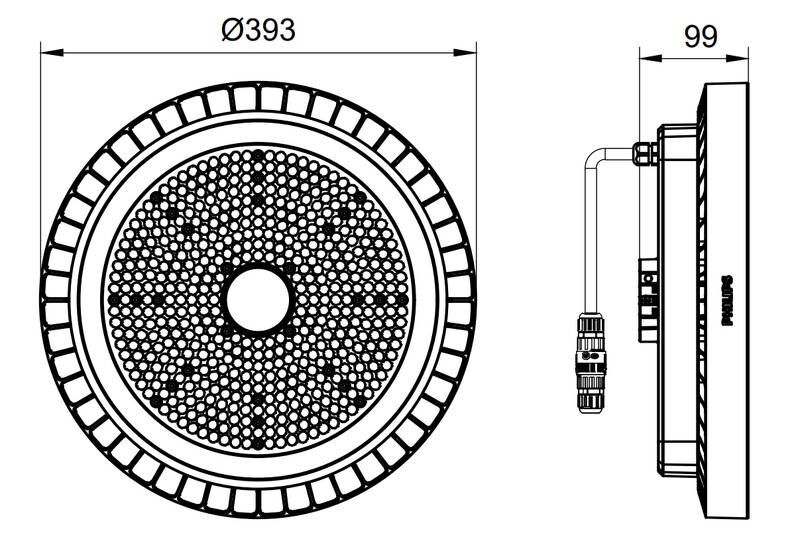

  • Luminaire diameter: 393 mm
  • Luminaire height: 99 mm
  • Lifespan: 100,000 h (L75)
  • 5-year product warranty
Applications

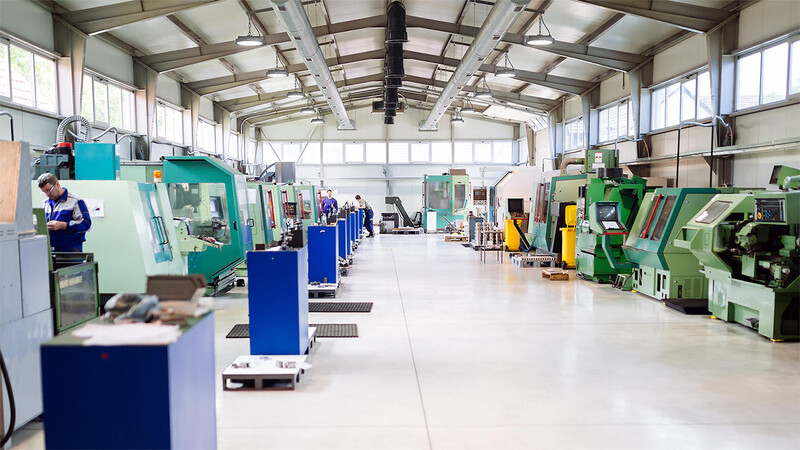

  • Industry
  • Logistics
  • Warehouses

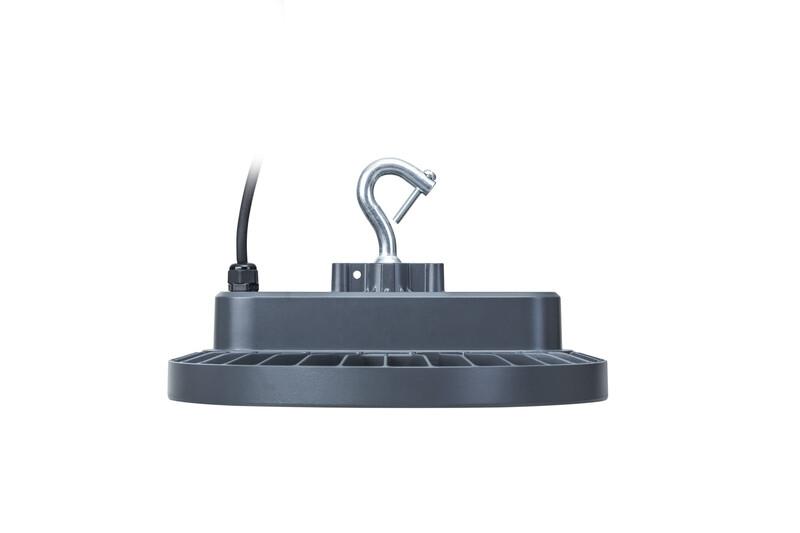

Philips CoreLine Highbay high bay lights are efficient and durable luminaires that ensure significant energy savings. The luminaire is very easy to handle: it can be directly connected to the electrical network, is lightweight and does not need to be opened for installation, and features an external IP65 connector. The high bay is suitable for installation at heights above 4 meters in industrial spaces. The luminaire has a lifespan of 100,000 hours with a 5-year product warranty.

Signify (formerly Philips Lighting) is a global market leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify’s business operations. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)High bay luminaire (EC001716)
Suitable for ceiling mountingyes
Suitable for wall mountingno
Suitable for suspended mountingyes
Lamp typeLED not exchangeable
With light sourceno
Suitable for number of light sources1
Suitable for auxiliary lampno
Lamp holderOther
Housing materialAluminium
Housing colourGrey
Voltage typeAC
Nominal voltage220 - 240 V
Nominal current830 - 1010 mA
Type of control gearLED operating device current-controlled
Exchangeable control gearyes

Product codes

SAPCYE558
STK4351314
PLC4351314
GTIN/EAN8719514956018
Manufacturer part number911401632708
Vendor material number4351314

Basic information

Package measurements (L x W x H)436 x 424 x 169 mm
Package volume31.242 l
Package weight4.9 kg
Base uniteach
Package units1
Package contents
UNSPSC39111817
BrandPHILIPS
VendorSIGNIFY FINLAND OY / VALAISIMET

Environment and safety

Documents (1)

Sustainability brochures & documents

Manufacturer

NameSignify Finland Oy
Postal addressTeknobulevardi 3-5, 01530 Vantaa
