CIRCULAR NEON LAMP TL-E 22W/840 G10Q
Product code
4923487
MASTER TL-E Circular
The circular TL lamp (tube diameter 29 mm) directs light in all directions. It is suitable for a wide variety of luminaires—including decorative ones—for different applications such as schools, offices, retail stores, homes, and residential area lighting.
Product dimensions
The circular TL lamp (tube diameter 29 mm) directs light in all directions. It is suitable for a wide variety of luminaires—including decorative ones—for different applications such as schools, offices, retail stores, homes, and residential area lighting.
Product dimensions
- Flange diameter D 27.1 (min), 30.9 (max) mm
- Total width E 203.2 (min), 215.9 (max) mm
- Inner width I 147.6 (min), 157.2 (max) mm
Product details
Technical specifications
Product class (ETIM)Fluorescent lamp (EC000108)
Lamp power22.2 W
Luminous flux1285 lm

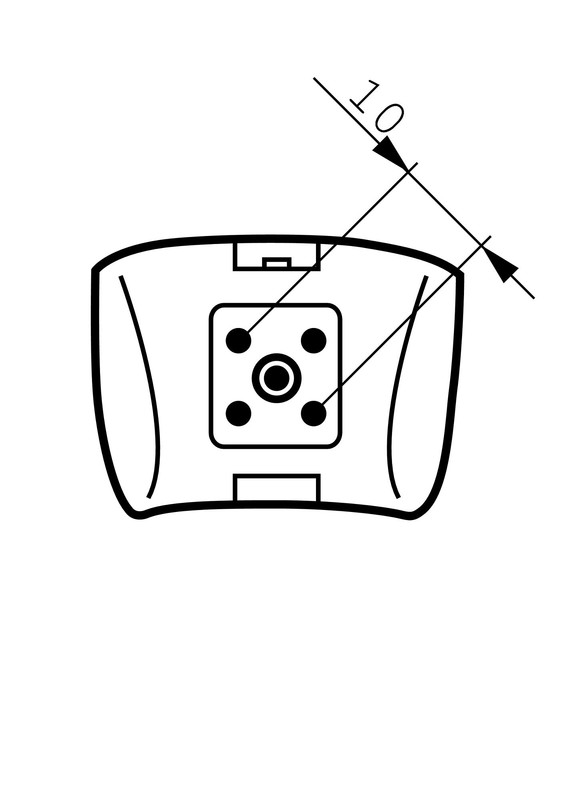

SocketG10q
Colour rendering index CRI80-89
Colour temperature4000 K
Lamp shapeRing
Lamp efficacy58 lm/W
Colour of light840
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Tube diameter30.9 mm
Length21.7 mm
Ring diameter215.9 mm
Internal reflectorno
ColourWhite
ApplicationGeneral
Product codes
SAPAIS735
STK4923487
PLC4923487
GTIN/EAN8727900840506
Manufacturer part number928026284070
Vendor material number4923487
Basic information
Package measurements (L x W x H)35 x 217 x 218 mm
Package volume1.656 l
Package weight0.02 kg
Base uniteach
Package units12 / 1296
Package contents–
UNSPSC39101618
BrandPHILIPS
VendorSIGNIFY FINLAND OY LAMPUT
Documents (7)
Brochures & documents
Links
Environment and safety
Features
Fully recyclable packagingYes
Warranty (years)1
Energy efficiency classG
Manufacturer
NameSignify Finland Oy
Postal addressTeknobulevardi 3-5, 01530 Vantaa
