EMERGENCY LUMINAIRE EM154C HO BKD 15S NM3 ELP IP65
Product code
4251907
Philips Emergency Bulkhead High Output emergency light
Features
Applications
Signify (formerly Philips Lighting) is a global leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify’s business operations.
This product description is an automated translation of the original Finnish description.
Features
- Luminous flux: 1587 lm
- Power: 10 W
- Luminous efficacy: 176 lm/W
- Color temperature: 6500 K
- Color rendering index: Ra80
- Beam angle: 135°
- Optics: open area or corridor optics
- Not dimmable
- IP rating: IP65
- IK rating: IK08
- Illuminated area: 24 m²
- Battery: LiFePO4 6.4V 6.6Ah
- Emergency light battery duration: 3 hours
- Automatically switches on
- Operating temperature range: +5...+40 °C
- Material: polycarbonate

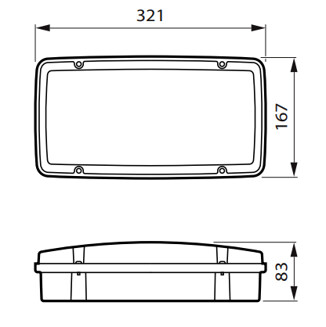

- Dimensions (height x width x depth): 83 x 167 x 321 mm
- Optics cover material: UV-stabilized polycarbonate
- Self-testing
- Lifespan: 100 000 h (B50)
- Product warranty: 5 years
Applications
- Escape routes
Signify (formerly Philips Lighting) is a global leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify’s business operations.
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Emergency luminaire (EC001957)
Mounting methodWall surface mounted
FunctionEscape route lighting
Suitable for labelling typeSticker
Type of indicatorFour-sided
With pictogramno
Suitable for standby switchingyes
Suitable for continuous circuitno
With remote switch connectionno
With remote controlno
Emergency function monitoring systemAutomatic self test
Emergency power supply systemPeripheral (individual battery)
Battery technologyLithium-ion
Type of lithium-ion batteryLithium iron phosphate (LiFePO4)
With heating element for batteryno
Lamp typeLED exchangeable
Product codes
SAPDJH552
STK4251907
PLC4251907
GTIN/EAN8718699798963
Manufacturer part number912401483511
Vendor material number912401483511
Basic information
Package measurements (L x W x H)326 x 172 x 88 mm
Package volume4.934 l
Package weight0.646 kg
Base uniteach
Package units1 / 10 / 50 / 200
Package contents–
UNSPSC39111501
BrandPHILIPS
VendorSIGNIFY FINLAND OY / VALAISIMET
