LED TUBE T5 T5 1500MM 830 5200LM 36W HF

Product code
4923697
Philips MASTER LED tube T5

Features
  • Luminous flux: 5,200 lm
  • Power: 36 W
  • Replaces traditional 80 W T5 fluorescent tube
  • Luminous efficacy: 144 lm/W
  • Color temperature: 3,000 K
  • Color rendering index: Ra80

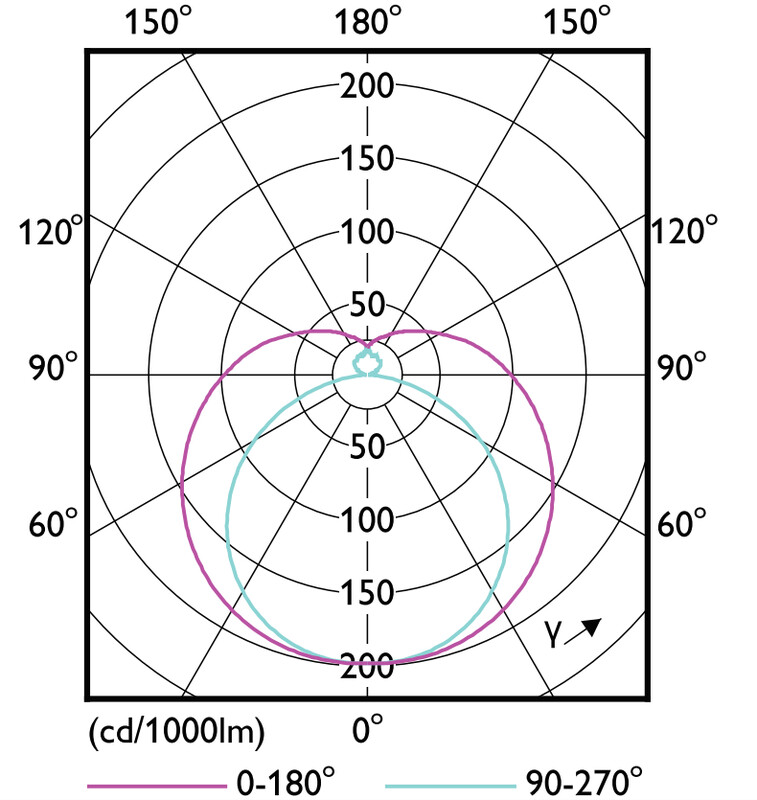

  • Beam angle: 200°
  • Dimmable - check ballast compatibility
  • For electronic ballast
  • Lamp finish: frosted
  • Lamp material: rigid glass

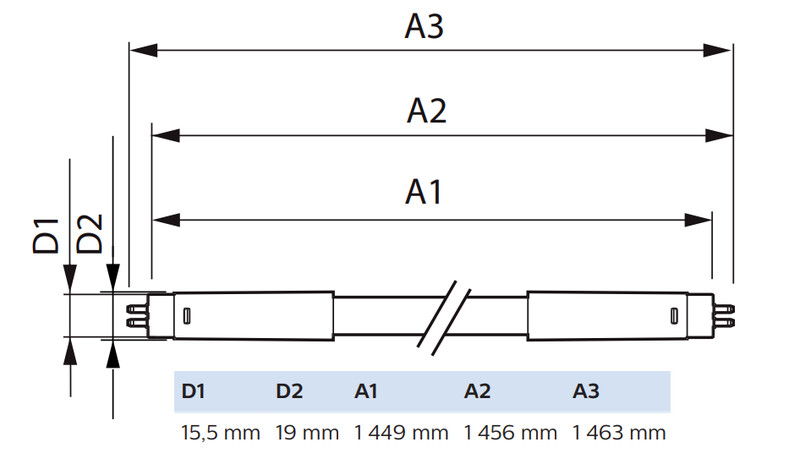

  • Lamp length: 1,500 mm
  • Base: G5
  • Energy efficiency class: E
  • Operating temperature: -20 ... +45 °C
  • Service life: 60,000 h
  • 5-year product warranty
Applications
  • Offices
  • Schools
  • Shops
  • General lighting
Philips MASTER LEDtube InstantFit T5 provides an excellent way to upgrade traditional fluorescent tubes to energy-efficient LED. The LED tube can be installed on an electronic ballast. The tube has a luminous flux of 5,200 lm and replaces a traditional 80 W T5 fluorescent tube of 1,500 mm. The tube is dimmable and has a service life of 60,000 hours with a 5-year product warranty.

Check ballast compatibility (via the User Instructions link).

Signify (formerly Philips Lighting) is a global market leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify’s business operations. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage55-85 V
Nominal current450-850 mA
Power factor0.9
Lamp power36-36 W
Voltage typeAC
Suitable for electronic ballastyes
Suitable for magnetic ballastyes
Luminous flux5200-5200 lm
Rated luminous flux according to IEC 626125200 lm
Lamp efficacy144 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, double-ended
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted

Product codes

SAPCPU981
STK4923697
PLC4923697
GTIN/EAN8719514419056
Manufacturer part number929003153902
Vendor material number4923697

Basic information

Package measurements (L x W x H)1463 x 19 x 19 mm
Package volume0.528 l
Package weight0.255 kg
Base uniteach
Package units10 / 70 / 1050
Package contents
UNSPSC39101628
BrandPHILIPS
VendorSIGNIFY FINLAND OY LAMPUT

Environment and safety

Sustainability categories

Circular economy
Energy efficiency

Features

Fully recyclable packagingYes
Warranty (years)5
Incandescent, halogen or fluorescent lightingNo
Energy efficiency classE

Manufacturer

NameSignify Finland Oy
Postal addressTeknobulevardi 3-5, 01530 Vantaa
