LED TUBE T5 T5 1500MM 865 5600LM 36W HF

Product code
4923699
Philips MASTER LEDtube T5

Features
  • Luminous flux: 5,600 lm
  • Power: 36 W
  • Replaces traditional 80 W T5 fluorescent tube
  • Luminous efficacy: 155 lm/W
  • Color temperature: 6,500 K
  • Color rendering index: Ra80

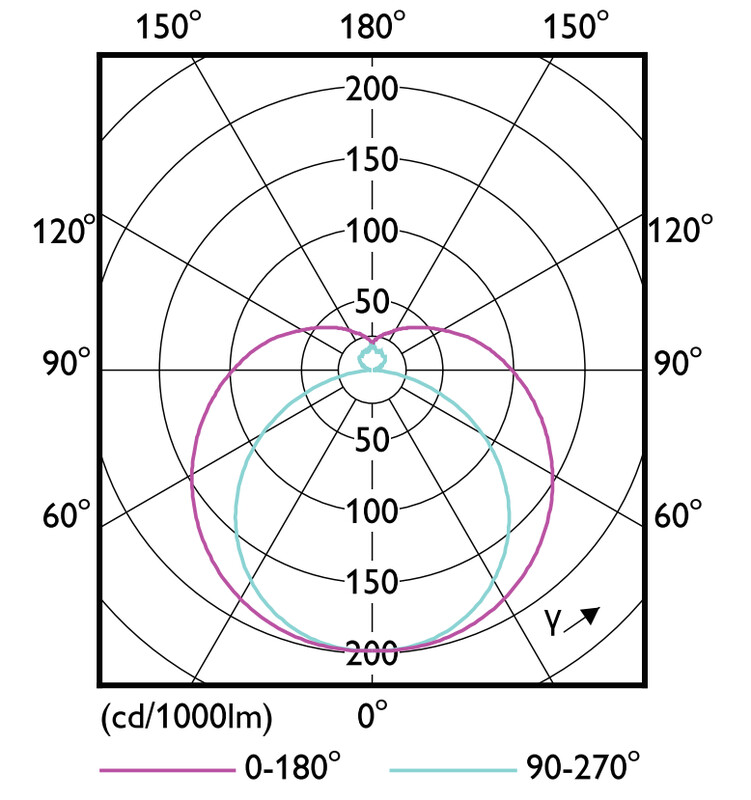

  • Beam angle: 200°
  • Dimmable - check ballast compatibility
  • For electronic ballast
  • Lamp finish: frosted
  • Lamp material: rigid glass

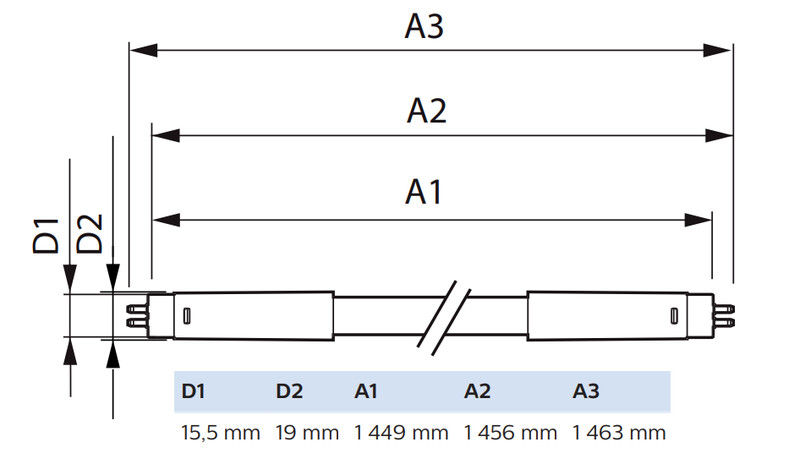

  • Lamp length: 1,500 mm

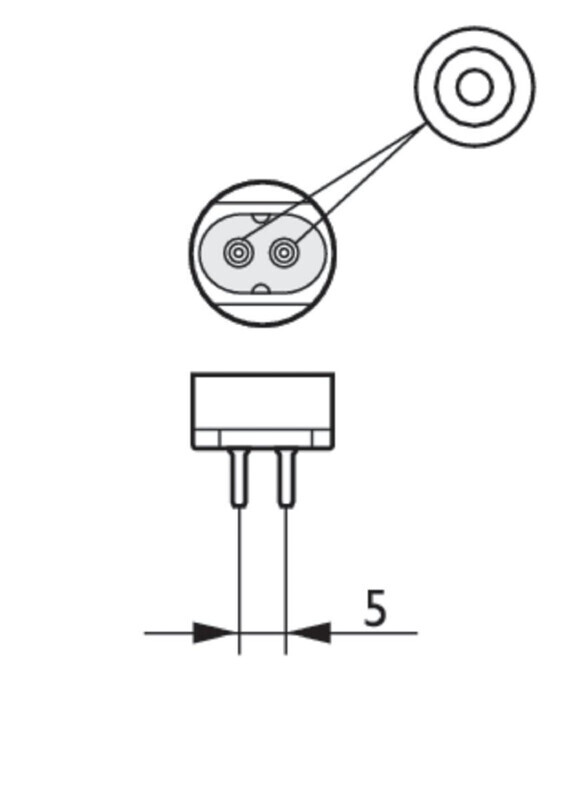

  • Base: G5
  • Energy efficiency class: D
  • Operating temperature: -20 ... +45 °C
  • Service life: 60,000 h
  • 5-year product warranty
Applications
  • Offices
  • Schools
  • Shops
  • General lighting
Philips MASTER LEDtube InstantFit T5 offers an excellent way to upgrade traditional fluorescent tubes to energy-efficient LED. The LEDtube can be installed on an electronic ballast. The lamp has a luminous flux of 5,600 lm and replaces a traditional 1,500 mm 80 W T5 fluorescent tube. The lamp is dimmable and has a service life of 60,000 hours with a 5-year product warranty. Check ballast compatibility (via the User Instructions link). Signify (formerly Philips Lighting) is a global market leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify’s business operations. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage55-85 V
Nominal current450-850 mA
Power factor0.9
Lamp power36-36 W
Voltage typeAC
Suitable for electronic ballastyes
Suitable for magnetic ballastyes
Luminous flux5600-5600 lm
Rated luminous flux according to IEC 626125600 lm
Lamp efficacy155 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, double-ended
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted

Product codes

SAPCPU983
STK4923699
PLC4923699
GTIN/EAN8719514419094
Manufacturer part number929003154102
Vendor material number4923699

Basic information

Package measurements (L x W x H)1463 x 19 x 19 mm
Package volume0.528 l
Package weight0.255 kg
Base uniteach
Package units10 / 70 / 1050
Package contents
UNSPSC39101628
BrandPHILIPS
VendorSIGNIFY FINLAND OY LAMPUT

Environment and safety

Sustainability categories

Circular economy
Energy efficiency

Features

Fully recyclable packagingYes
Warranty (years)5
Incandescent, halogen or fluorescent lightingNo
Energy efficiency classD

Manufacturer

NameSignify Finland Oy
Postal addressTeknobulevardi 3-5, 01530 Vantaa
