LEDLAMP 3600lm 840 25W ON/OFF L1500 WH

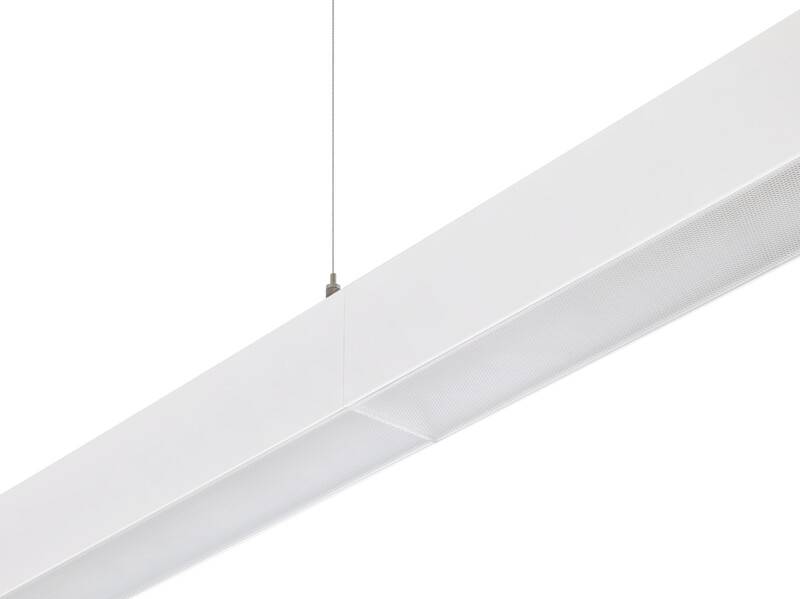

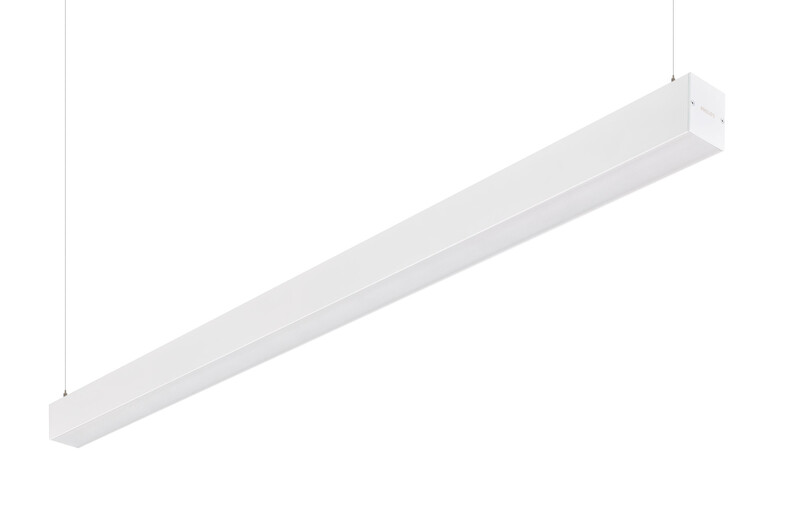

Philips KeyLine surface and suspension light
Features

• Luminous flux: 3600 lm
• Power: 25 W
• Luminous efficacy: 144 lm/W
• Color temperature: 4000 K
• Color rendering index: Ra80

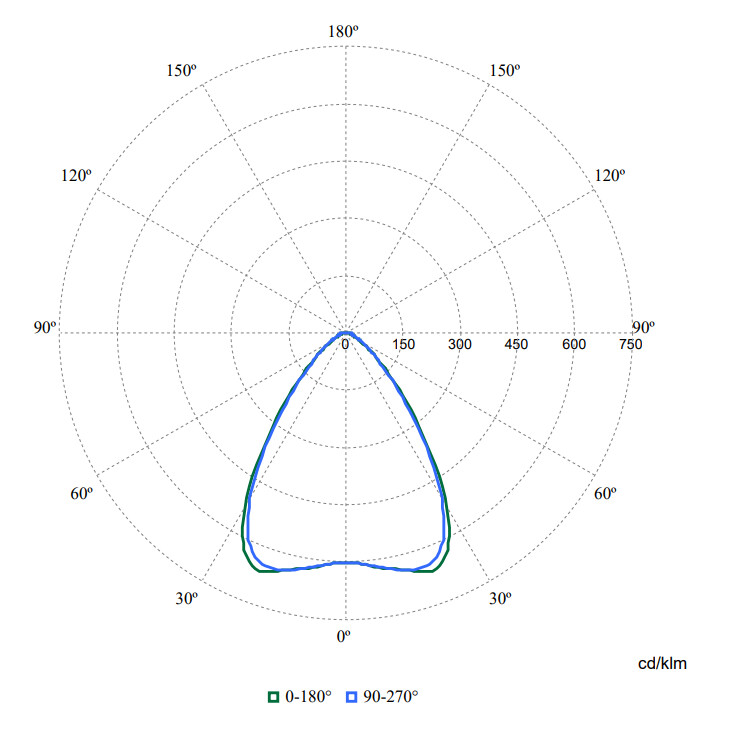

• Beam angle: 74°
• Glare index UGR < 19 (office compatible)
• Medium beam optics
• Non-dimmable
• ON/OFF
• IP rating: IP20
• IK rating: IK06
• Operating temperature: +10...+35 °C
• Length: 1500 mm
• Light color: white
• Surface and suspension mounting, suitable for forming light lines
• Lifespan: 100 000 h (L80)
• Product warranty 5 years

Applications

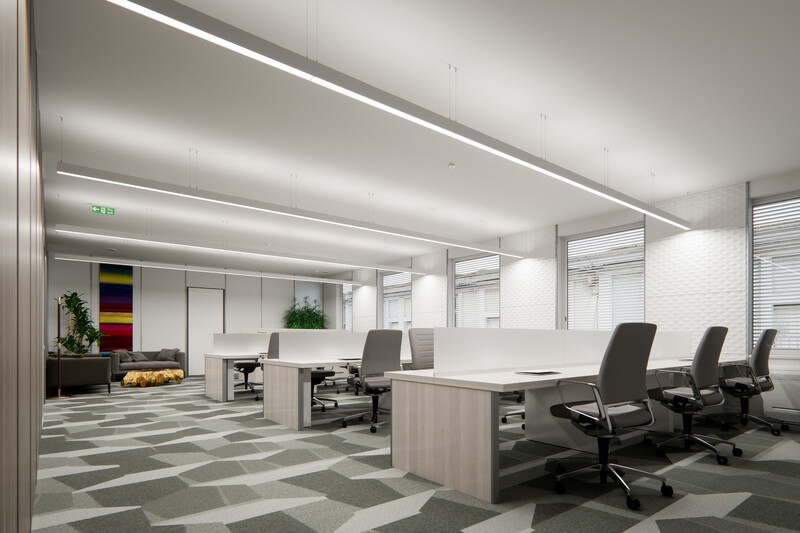

• Offices
• Retail stores
• Educational institutions

Philips KeyLine is a premium product line with a thin and minimalist design suitable for inconspicuous installation. Thanks to its high luminous flux, it can brightly illuminate even dim spaces. The light is suitable for display screen work (UGR value under 19). KeyLine is an ideal choice for light lines, individual suspension lighting requirements, and surface mounting.

NOTE: THE LIGHT DOES NOT INCLUDE PARTS OR END CAPS REQUIRED FOR INSTALLATION

Below are example configurations for different mounting methods:

• Single light for surface mounting: Light + end caps + surface mounting bracket
• Single light for suspension mounting: Light + end caps + suspension set with ceiling cup
• Light line for surface mounting: Lights + end caps + connecting brackets + surface mounting brackets (+ corner light for corner formation)
• Light line for suspension mounting: Lights + end caps + connecting brackets + suspension set with ceiling cup + suspension set without ceiling cup (+ corner light for corner formation)

NOTE: Also available with 3-pole power cable for 3-phase wiring and 5-pole power cable for DALI installation.

Summary of KeyLine light mounting accessories:

• 4250651 SP350Z SM2 WH. KeyLine suspension set. Adjustable suspension cable x2, ceiling mount x1, ceiling cup x1, white.
• 4250654 SP350Z SM2 SI. KeyLine suspension set. Adjustable suspension cable x2, ceiling mount x1, ceiling cup x1, silver.
• 4250657 SP350Z C1700P3 SI. 3-pole power cable 1700mm, silver.
• 4250660 SP350Z C1700P5 SI. 5-pole power cable 1700mm, silver.

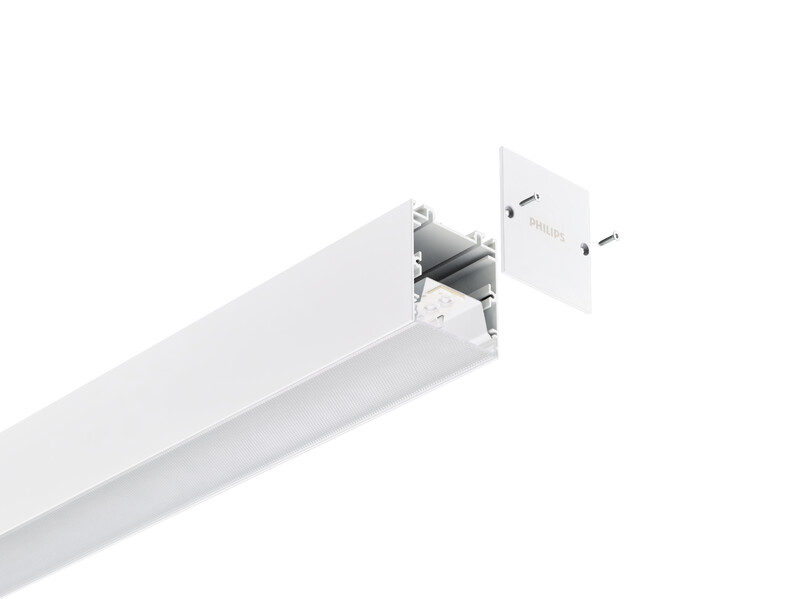

• 4250672 SP350Z EP WH. End caps for KeyLine light, white.
• 4250675 SP350Z EP BK. End caps for KeyLine light, black.
• 4250678 SP350Z EP SI. End caps for KeyLine light, aluminum.

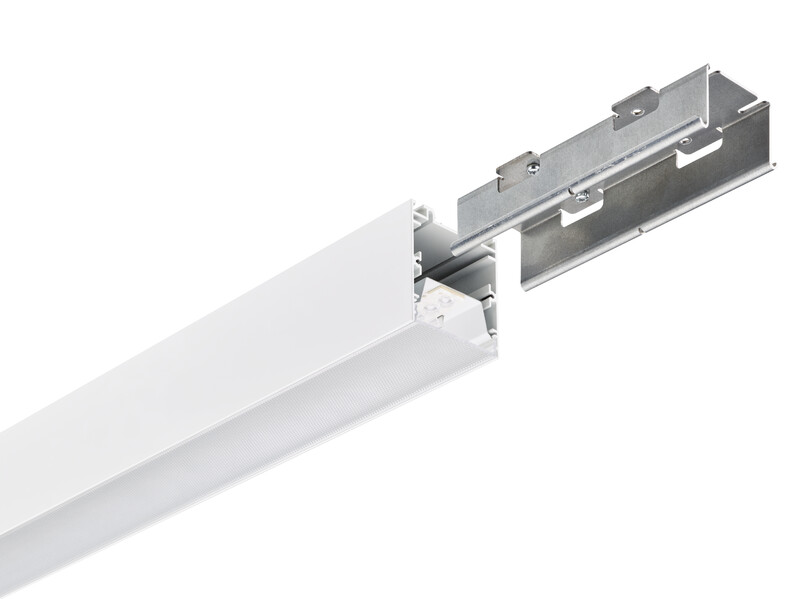

• 4250679 SP350Z CP. Connecting bracket for KeyLine light line installation.
• 4250680 SP350Z CMB. Surface mounting bracket for KeyLine light.
• 4250681 SP350Z SW2. Suspension set for KeyLine light. Adjustable suspension cable x2, ceiling mount x2.
• 4250663 SM350X 27S/840 PSD L60L60 ALU. L-shaped corner This product description is an automated translation of the original Finnish description.
