LEDLAMP 4200lm 840 30W ON/OFF L1200 WH

Name: LEDLAMP 4200lm 840 30W ON/OFF L1200 WH
Brand: PHILIPS
SKU: CNV522

Product code

4250609

Philips KeyLine surface and suspension light
Features

Luminous flux: 4200 lm
Power: 30 W
Luminous efficacy: 140 lm/W
Color temperature: 4000 K
Color rendering index: Ra80

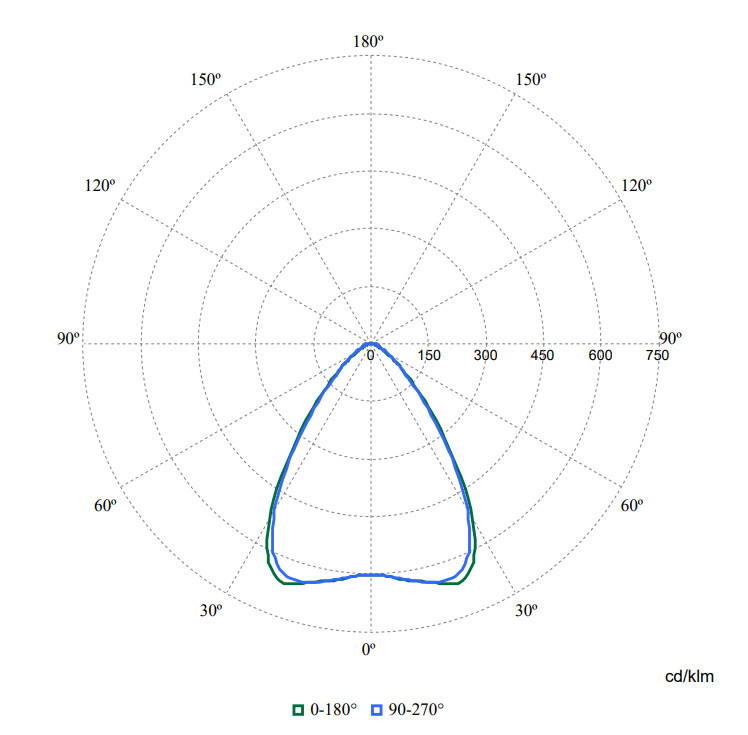

Beam angle: 74°
Glare index UGR < 19 (office compatible)
Medium beam optics
Non-dimmable
ON/OFF
IP rating: IP20
IK rating: IK06
Operating temperature: +10...+35 °C

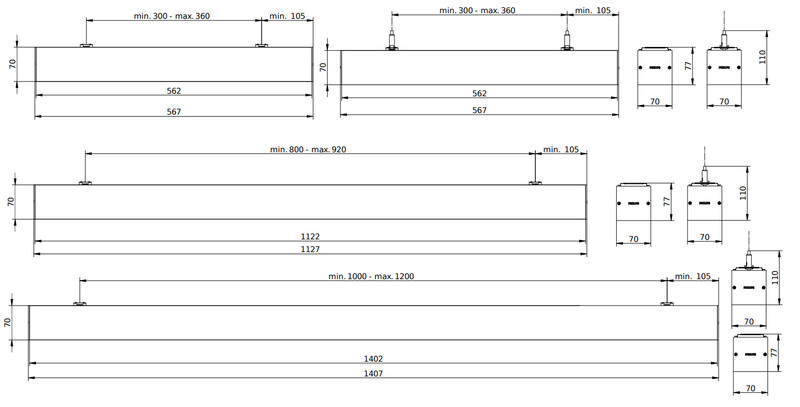

Length: 1200 mm
Light color: white
Surface and suspension mounting, suitable for forming light lines
Lifespan: 100 000 h (L80)
Product warranty 5 years

Applications

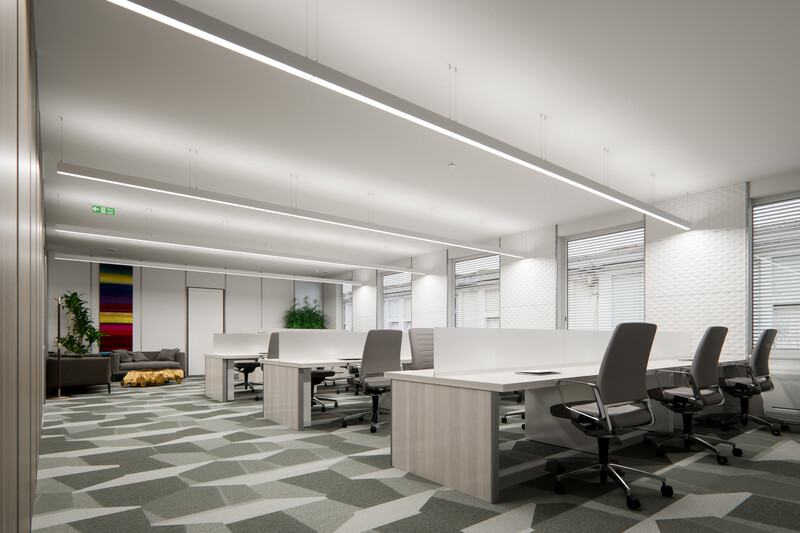

Offices
Retail stores
Educational institutions

Philips KeyLine is a premium product line with a thin and minimalist design suitable for unobtrusive installation. Thanks to its high luminous flux, it can brightly illuminate even dim spaces. The light is suitable for display terminal work (UGR value under 19). KeyLine is an ideal choice for light lines, individual suspension lighting requirements, and surface mounting.

NOTE: THE LIGHT DOES NOT INCLUDE PARTS OR END CAPS REQUIRED FOR INSTALLATION

Below are example configurations for different mounting methods:

Single light for surface mounting: Light + end caps + surface mounting bracket

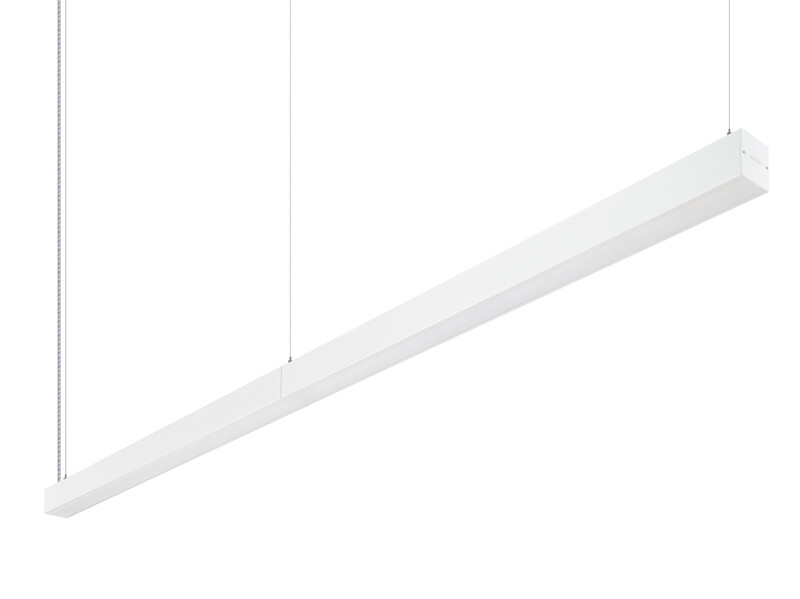

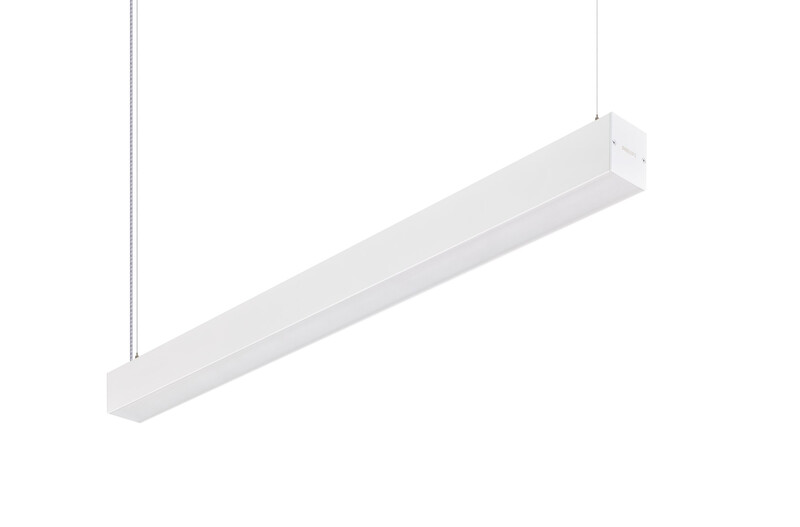

Single light for suspension mounting: Light + end caps + suspension set with ceiling cup
Light line for surface mounting: Lights + end caps + connecting brackets + surface mounting brackets (+ corner light for corner formation)
Light line for suspension mounting: Lights + end caps + connecting brackets + suspension set with ceiling cup + suspension set without ceiling cup (+ corner light for corner formation)

NOTE: Also available with 3-pole cable for 3-phase wiring and 5-pole cable for DALI installation.

Summary of KeyLine light mounting accessories:

4250651 SP350Z SM2 WH. KeyLine suspension set. Adjustable suspension cable x2, ceiling mount x1, ceiling cup x1, white.
4250654 SP350Z SM2 SI. KeyLine suspension set. Adjustable suspension cable x2, ceiling mount x1, ceiling cup x1, silver.
4250657 SP350Z C1700P3 SI. 3-pole cable 1700mm, silver.
4250660 SP350Z C1700P5 SI. 5-pole cable 1700mm, silver.

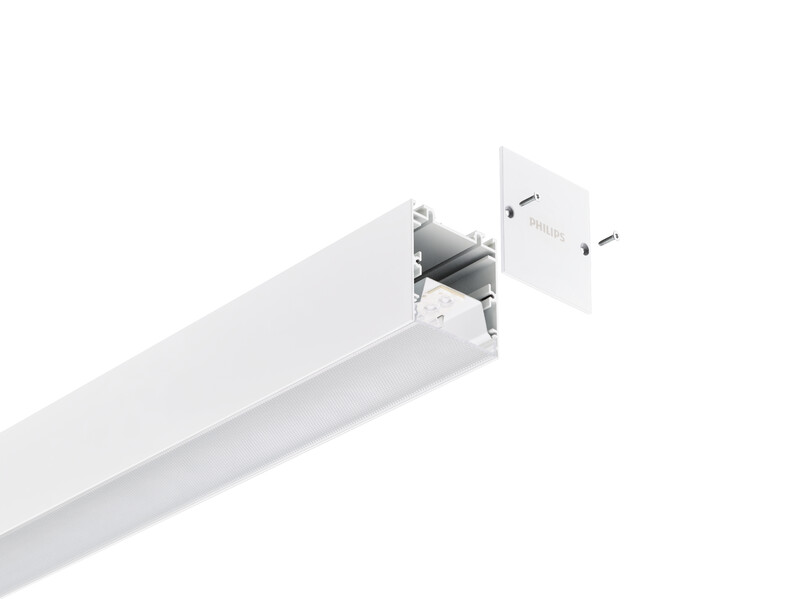

4250672 SP350Z EP WH. End caps for KeyLine light, white.
4250675 SP350Z EP BK. End caps for KeyLine light, black.
4250678 SP350Z EP SI. End caps for KeyLine light, aluminum.
4250679 SP350Z CP. Connecting bracket for KeyLine light line installation.

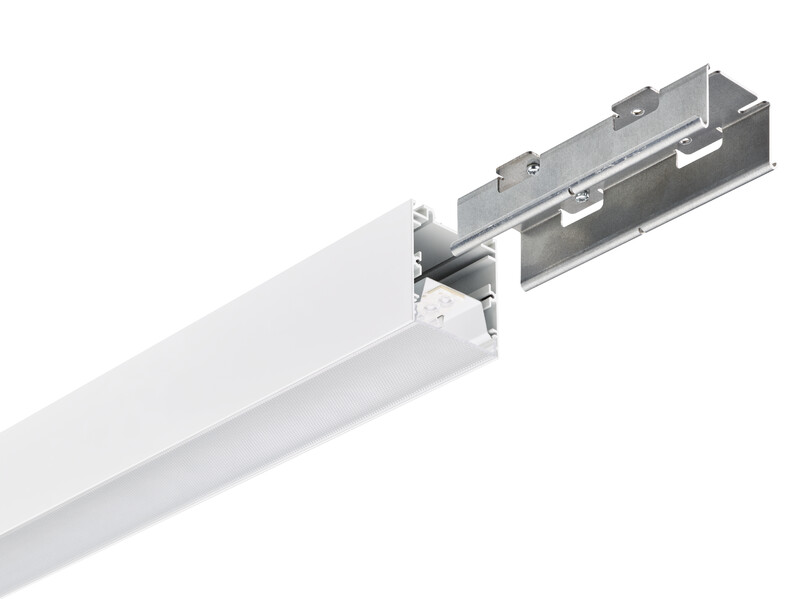

4250680 SP350Z CMB. Surface mounting bracket for KeyLine light.
4250681 SP350Z SW2. Suspension set for KeyLine light. Adjustable suspension cable x2, ceiling mount x2.
4250663 SM350X 27S/840 PSD L60L60 ALU. L-shaped corner light for forming light lines. This product description is an automated translation of the original Finnish description.
