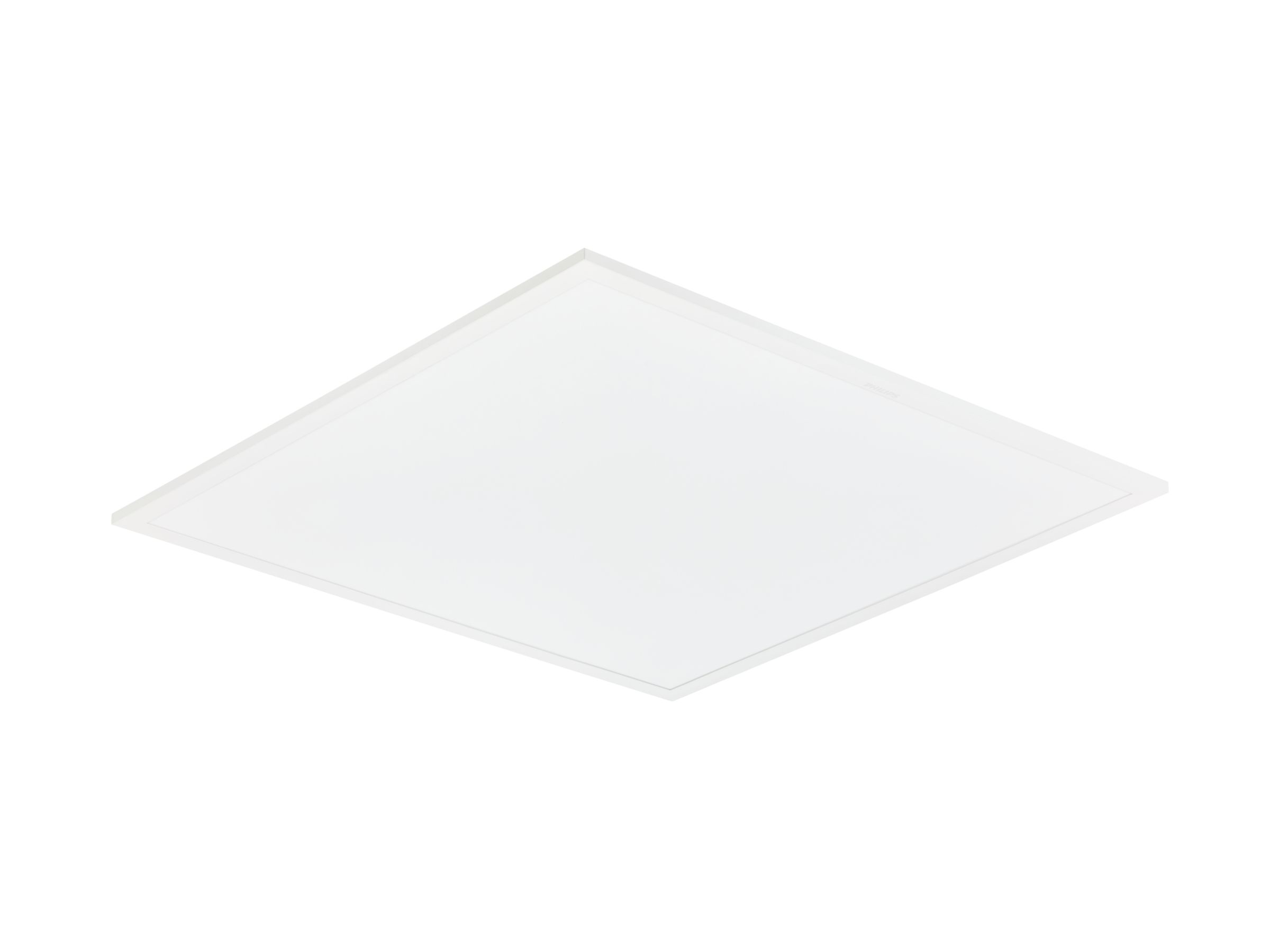

MODULAR LUMINAIRE LEDINAIRE PA 3400/3600lm CCT DALI 60x60 OC

Product code
4151427
Philips Ledinaire Panel All-in 60x60 modular light for offices Features - Adjustable luminous flux: 3400 / 3600 lm - Power: 28 W - Luminous efficacy: 120 lm/W - Adjustable color temperature: 3000 / 3500 / 4000 K via DIP switch - Color rendering index: Ra80 - Beam angle: 90° - Glare index: UGR < 19 (office compatible) - IP rating: front IP40, back IP20 - IK rating: IK02 - Not suitable for push-button dimming - DALI - Dimmable - External driver - Rotatable quick connector between panel and driver - Tool-free suspension - Chainable - Ceiling, surface, or recessed mountable - Operating temperature: -10 ... +35 °C - Size: 60 x 60 cm - Lifespan: 75 000 hours (L70) - 5-year product warranty Applications - General lighting - Office spaces - Suitable for display screen work due to low glare The Philips Ledinaire Panel modular light produces pleasant, uniform, and high-quality light and can be used in various general lighting applications. The light has a UGR value below 19, making it suitable for office use. The light has adjustable luminous flux of 3400 / 3600 lm and color temperature of 3000 / 3500 / 4000 K. The light is dimmable and DALI controllable. The light has a size of 60 x 60 cm and comes with a five-year product warranty. Signify (formerly Philips Lighting) is a global leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify’s business operations. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingyes
With mounting materialyes
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Lamp holderOther
Housing materialSteel
Surface protection housingPowder coating
Housing colourWhite

Product codes

SAPDCY152
STK4151427
PLC4151427
GTIN/EAN8720169516977
Manufacturer part number911401877485
Vendor material number911401877485

Basic information

Package measurements (L x W x H)635 x 43 x 610 mm
Package volume16.656 l
Package weight2.3 kg
Base uniteach
Package units1 / 4 / 24 / 24
Package contents
UNSPSC39111503
BrandPHILIPS
VendorSIGNIFY FINLAND OY / VALAISIMET

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)29.9
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Documents (1)

Sustainability brochures & documents

Manufacturer

NameSignify Finland Oy
Postal addressTeknobulevardi 3-5, 01530 Vantaa
