PLUG-IN LAMP COREPRO G23 830 9/11=5W PLS 2P EM/230V

Product code
4926094

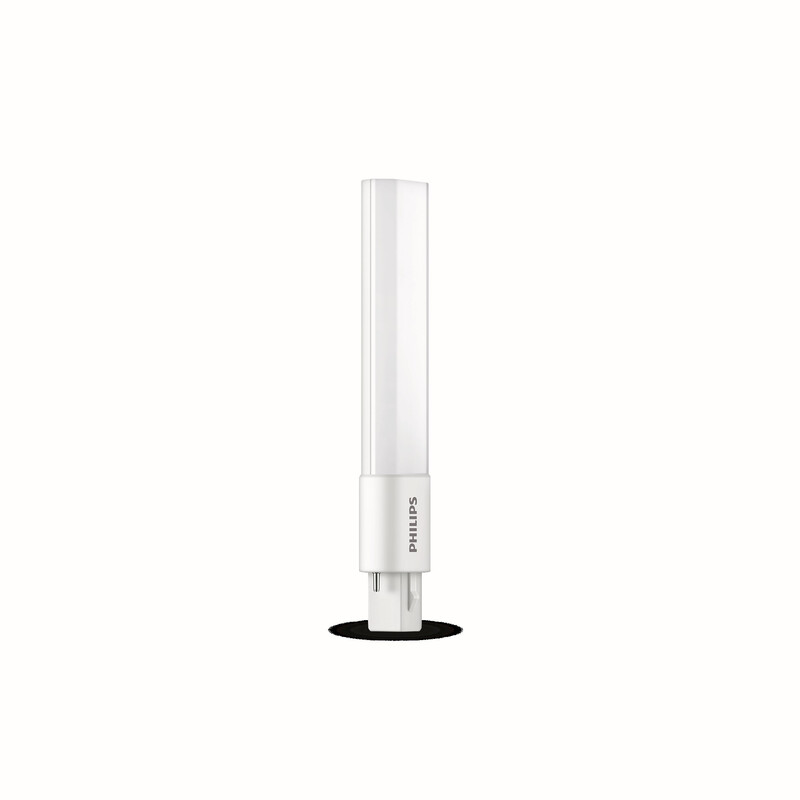

Philips CorePro LED PLS plug-in lamp. Features
  • Luminous flux: 520 lm
  • Power: 5 W
  • Replaces conventional 9/11 W PLS lamp
  • Luminous efficacy: 104 lm/W
  • Color temperature: 3000 K
  • Color rendering index: Ra82

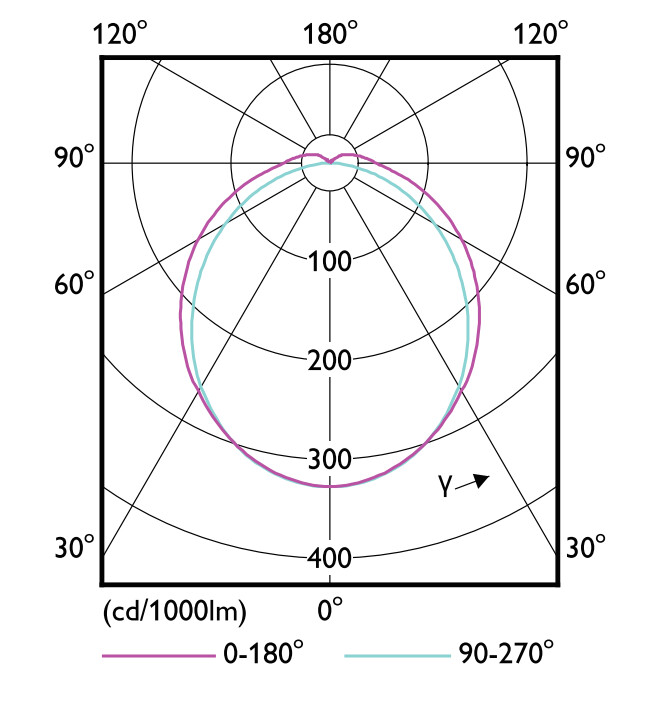

  • Beam angle: 120°
  • Non-dimmable
  • Compatible with electromagnetic ballast or direct mains connection
  • Suitable for series connection
  • Operating temperature: -20 °C ... +45 °C
  • Lamp finish: frosted
  • Lamp material: plastic
  • Base: G23
  • Energy efficiency class: F
  • Lifetime: 30 000 h
  • 3-year product warranty
Applications
  • Indoor lighting
  • Shops
  • Industrial facilities and warehouses

Philips CorePro LED PLS plug-in lamps offer an easy way to replace conventional PLS lamps in indoor environments such as industrial facilities and warehouses. The lamp has a luminous flux of 520 lm and replaces conventional 9 or 11 W PLS lamps. The lamp is suitable for series connection and compatible with both electromagnetic ballasts and direct mains connection. The lamp has a lifetime of 30 000 hours with a 3-year product warranty. Signify (formerly Philips Lighting) is a global leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify's business operations.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-240 V
Nominal current31-31 mA
Power factor0.9
Lamp power5-5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux520-520 lm
Rated luminous flux according to IEC 62612520 lm
Lamp efficacy104 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbPlastic
Type of glass/coverFrosted

Product codes

SAPDER254
STK4926094
PLC4926094
GTIN/EAN8720169286580
Manufacturer part number929003756802
Vendor material number4926094

Basic information

Package measurements (L x W x H)23 x 34 x 168 mm
Package volume0.131 l
Package weight0.05 kg
Base uniteach
Package units1 / 20 / 900 / 4500
Package contents
UNSPSC39101628
BrandPHILIPS
VendorSIGNIFY FINLAND OY LAMPUT

Environment and safety

Sustainability categories

Features

Fully recyclable packagingYes
Warranty (years)3
Incandescent, halogen or fluorescent lightingNo
Energy efficiency classF

Manufacturer

NameSignify Finland Oy
Postal addressTeknobulevardi 3-5, 01530 Vantaa
