UNIVERSAL LUMINAIRE CORELINE 3000/4800LM CCT 3LJ. L1160

Philips CoreLine FastSet light

Features

• Adjustable luminous flux: 3000/3450/4100/4800 lm
• Adjustable power: 20/25/30/34 W
• Replaces 2 x 36W T8 fluorescent tube light
• Luminous efficacy: 140 lm/W
• Adjustable color temperature: 3000/4000K
• Color rendering index: Ra80
• Beam angle: 110°
• Wide light distribution
• Non-dimmable
• ON/OFF
• 5-pin spring terminal
• 3-phase pass-through 5x2.5mm2
• Pass-through terminals at both ends and center of base
• Chainable
• D-class rated
• Front IP44 rating, rear IP20 rating
• IK06 rating
• Installation height 2-4 m
• Operating temperature: -20 ... +45°C

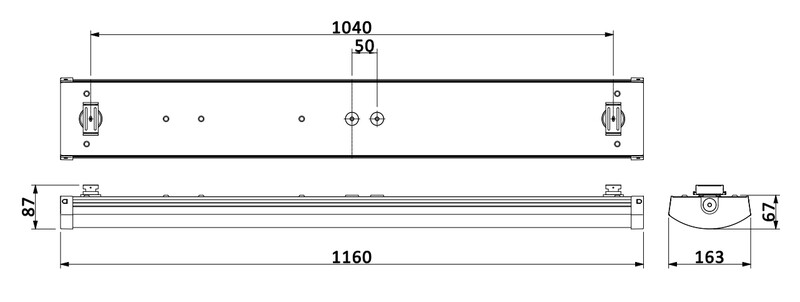

• Light fixture dimensions: 67 x 163 x 1160 mm
• Surface mountable and suspension ready
• Lifetime: 100 000h (L65)
• 5-year product warranty

Applications

• General lighting
• Industry
• Corridors, stairwells

Philips CoreLine FastSet is an IP44 and D-class rated light for general lighting applications. The light is suitable for individual installation or as a light line. The light is surface mountable and suspension ready. It features adjustable luminous flux of 3000/3450/4100/4800 lm and adjustable color temperature of 3000/4000K. The all-in features of the product enable versatile use. The light is 1160 mm long and ON/OFF. The product has a service life of 100,000 hours with a 5-year product warranty.

Signify (formerly Philips Lighting) is a global market leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify’s business operations.

This product description is an automated translation of the original Finnish description.
