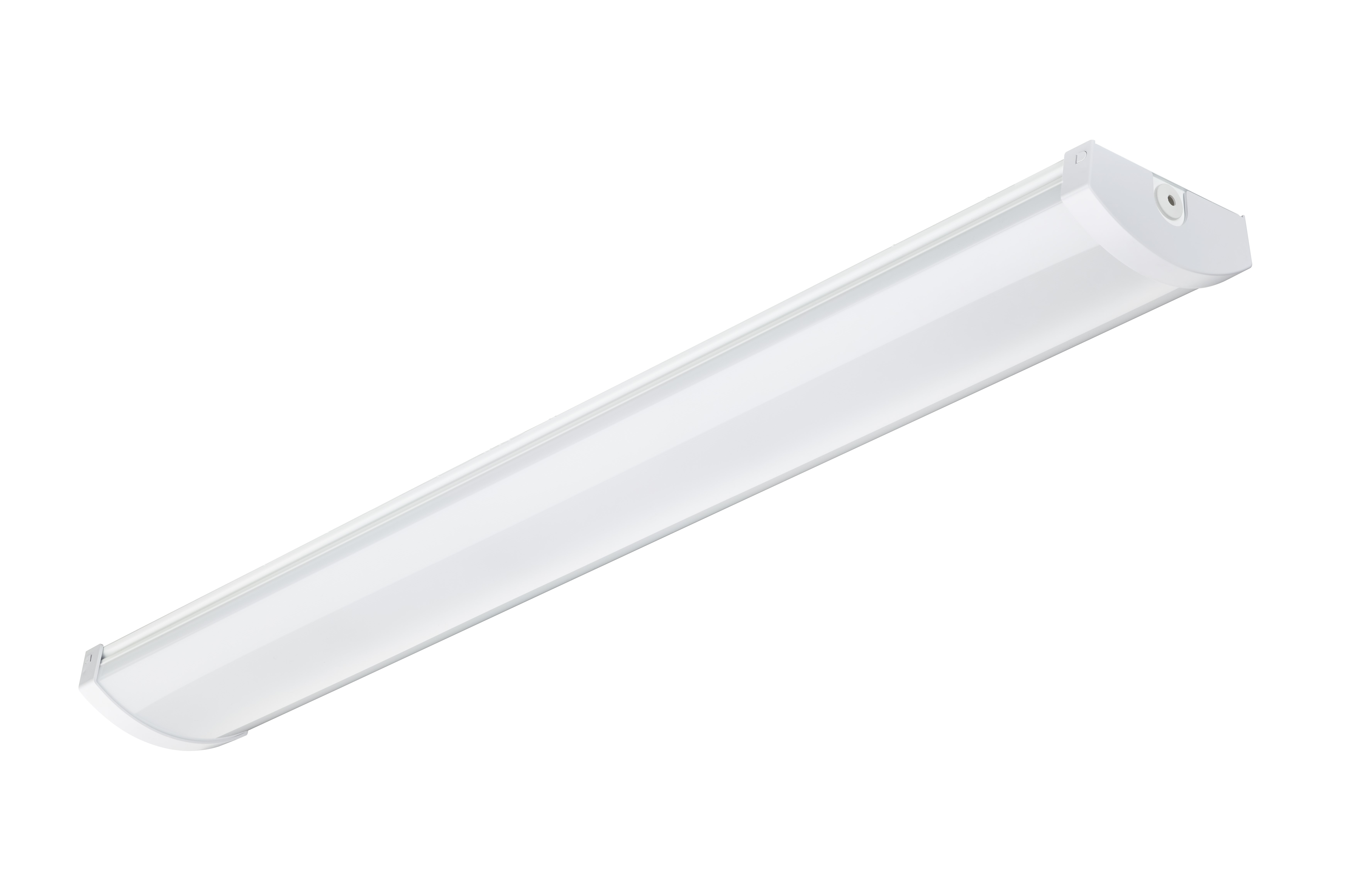

UNIVERSAL LUMINAIRE CORELINE 3700-6000LM CCT 3LJ. L1440

Name: UNIVERSAL LUMINAIRE CORELINE 3700-6000LM CCT 3LJ. L1440
Brand: PHILIPS
SKU: DBE336

Product code

4151413

Philips CoreLine FastSet light

Features

Adjustable luminous flux: 3700/4250/5100/6000 lm
Adjustable power: 25/30/36/43 W
Replaces 2 x 58W T8 fluorescent tube lights
Luminous efficacy: 140 lm/W
Color temperature: 3000/4000K
Color rendering index: Ra80
Beam angle: 110°
Wide light distribution
Non-dimmable
ON/OFF

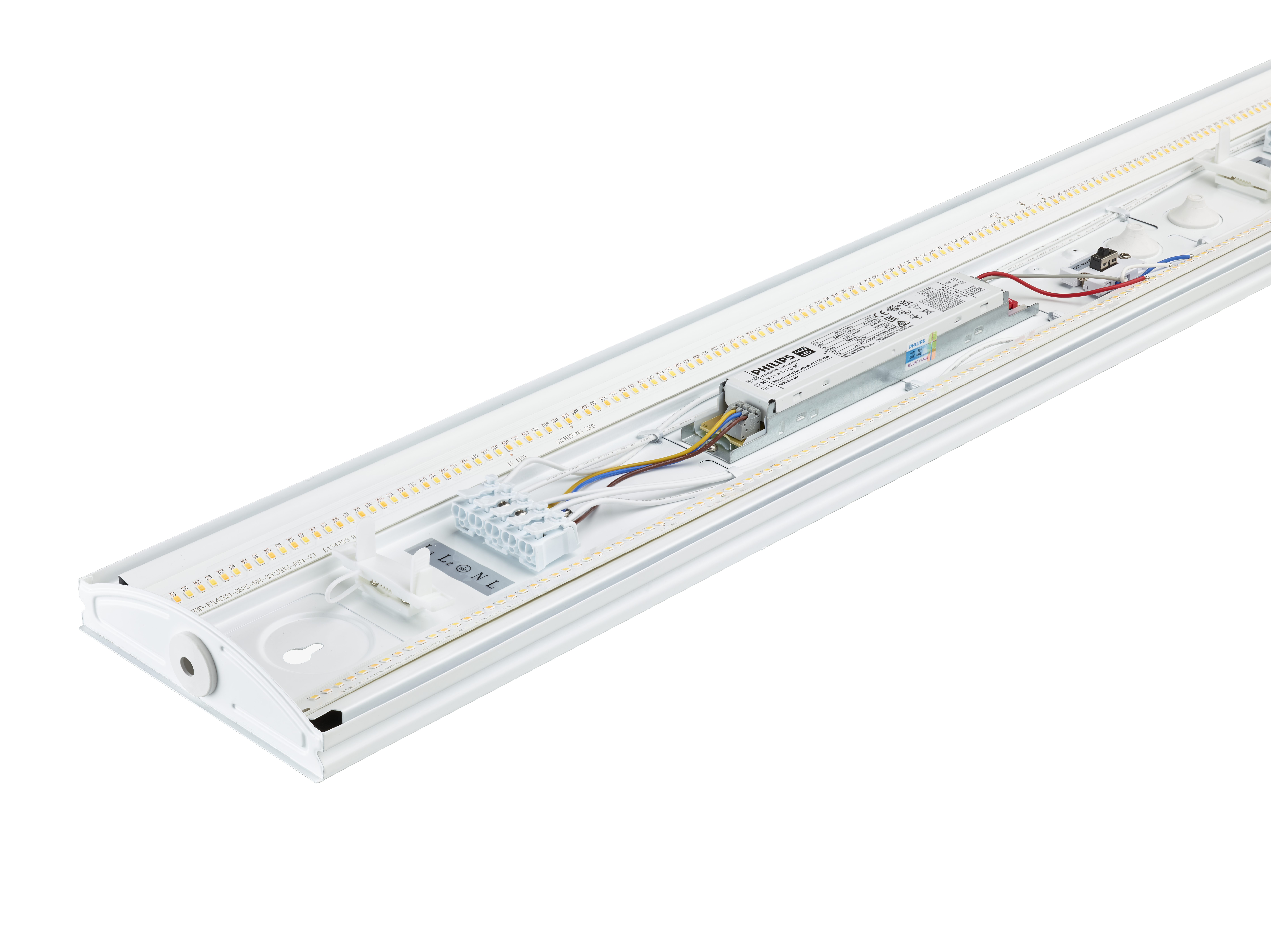

5-pin spring terminal
3-phase through-wiring 5x2.5mm2
Through-wiring terminals at both ends and center of the base
Chainable
D-class rated
Front IP44 rating, rear IP20 rating
IK06 rating
Installation height 2-4 m
Operating temperature: -20 ... +45°C
Light fixture dimensions: 67 x 163 x 1440 mm
Surface mountable and suspension ready
Lifespan: 100,000h (L65)
5-year product warranty

Applications

General lighting
Industry
Corridors, stairwells

Philips CoreLine FastSet is an IP44 and D-class rated light for general lighting applications. The light is suitable for individual installation or as a light line. The light is surface mountable and suspension ready. It features adjustable luminous flux of 3700/4250/5100/6000 lm and adjustable color temperature of 3000/4000K. The all-in features of the product enable versatile use. The light is 1440 mm long and ON/OFF. The product has a lifespan of 100,000 hours with a 5-year product warranty.

Signify (formerly Philips Lighting) is a global market leader in lighting. Our portfolio includes LED lamps and luminaires, wireless control systems, and other lighting innovations for professional and home use. Sustainability values are at the core of Signify’s business operations. This product description is an automated translation of the original Finnish description.
