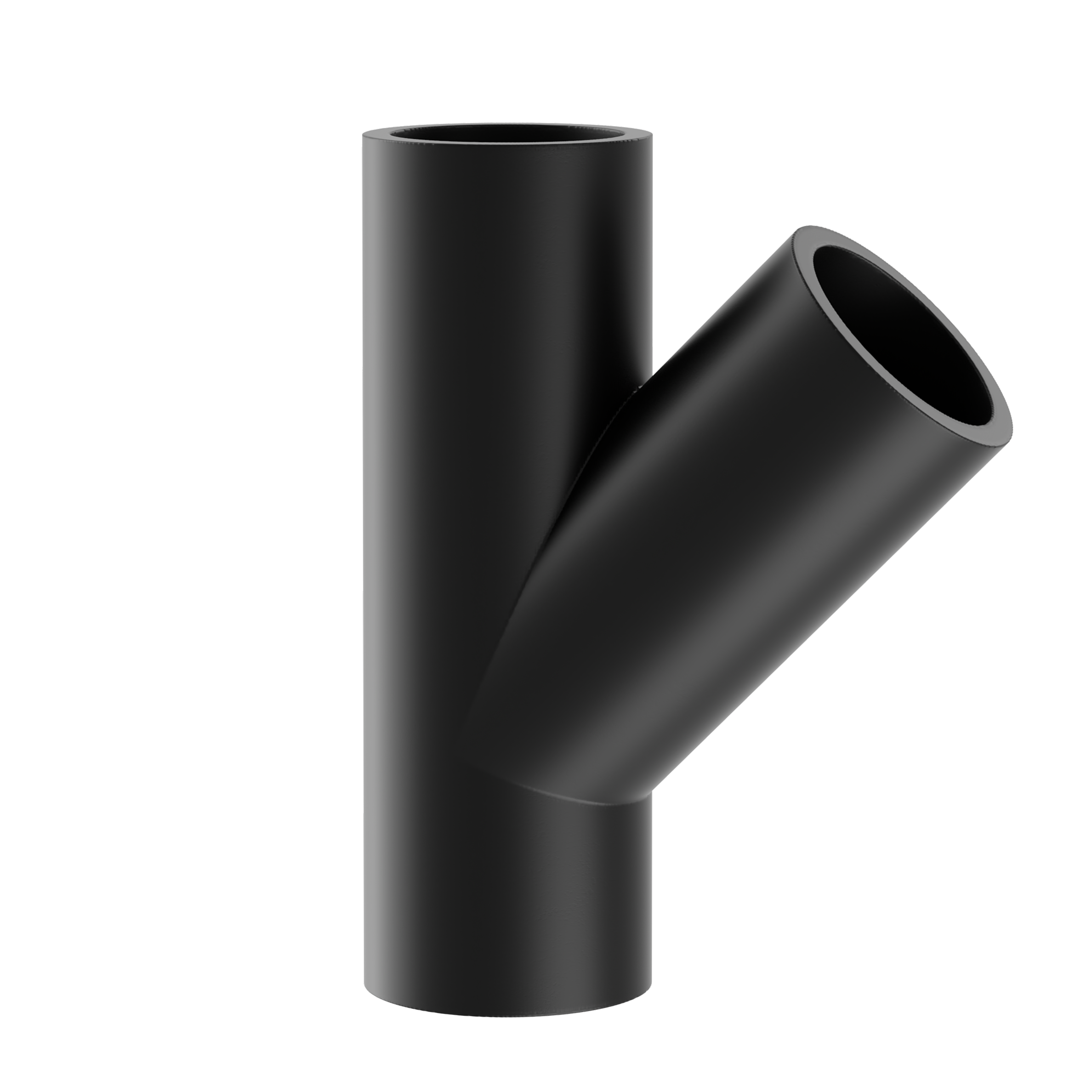

BRANCH PIPELIFE 160x110x45 PE PN6
Product code
2302677
The roof drainage system of the pipeline builds the internal drainage system of the property, directing rainwater effortlessly from the building's roof to the stormwater sewer. The roof drainage branch fitting connects to sewer pipes. The branch fitting is made of durable HDPE material with high UV protection and chemical resistance. The product color is black. Application area BD: installable in buildings, drains, ground, or beneath buildings on the property. The product can be recycled at plastic recycling points. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Polyethylene (PE)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polyethylene (PE)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
Material connection 3Polyethylene (PE)
Surface protection connection 3Untreated
Surface treatment connection 3Untreated
ModelY-piece
Angle45 °
Outer pipe diameter connection 1110 mm
Connection 1Spigot/tube end
Outer pipe diameter connection 2110 mm
Connection 2Spigot/tube end
Product codes
SAPCZN164
HPAC2302677
PLC2302677
GTIN/EAN9010459568908
Manufacturer part number70024960
Vendor material number70024960
Basic information
Package measurements (L x W x H)380 x 285 x 160 mm
Package volume17.328 l
Package weight1.3 kg
Base uniteach
Package units1 / 5 / 15
Package contents–
UNSPSC40171711
BrandPIPELIFE
VendorPIPELIFE FINLAND OY
Documents (6)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)2
RecyclableYes
Manufacturer
NamePipelife Finland Oy
Postal addressKiviharjunlenkki 1 E, 90220 Oulu/Finland
