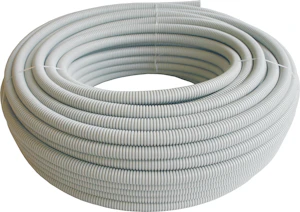

FLEXIBLE BEND HF FLEXIBLE PLASTIC PIPE 20MM

Product code
1105320

The Pipelife halogen-free flexible electrical installation pipe is suitable for all construction sites where better fire safety is required. Halogen-free installation pipes do not produce harmful combustion gases when burned. Halogen-free installation pipes are used, for example, in hospitals, nursing homes, shipbuilding or in sites where there are many people.

Features:
  • Halogen-free
  • diameter
  • 20mm
  • Length 100m
  • Material PP
  • Colour light grey

The Pipelife flexible installation pipe is suitable for concrete casting and other flush installations. Flexible electrical installation pipes are delivered in coils.

The pipe is manufactured in accordance with the requirements of the EN 61386-1 standard from durable PP material. The halogen-free electrical installation pipe has been tested and fully meets the requirements for halogen-free products. Installation and operating temperature from -25 to +90şC. The impact resistance of the mounting pipe is medium strength and the compressive strength is 750N.

In Onninen's selection, you will find a wide range of electrical installation accessories, check out the selection in Onninen's online store or at your nearest Express store.



This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Plastic installation tube (EC001174)
MaterialPolypropylene (PP)
Halogen freeyes
Fire retardant versionyes
Bending strengthPliable
With sleeveno
Surface mountingyes
Suitable for installation on woodyes
Suitable for hollow wall installationyes
Suitable for concrete installationyes
Machine and systems installationno
Suitable for underfloor installation (screed)yes
Suitable for underground installationno
Inner diameter13.9 mm
Outer diameter20 mm
Operating temperature-25 - 90 °C

Product codes

SAPASG009
STK1105320
PLC1105320
GTIN/EAN9010459139207
Manufacturer part number1234003188
Vendor material number1234003188

Basic information

Package measurements (L x W x H)1000 x 20 x 20 mm
Package volume0.617 l
Package weight0.081 kg
Base unitMeter
Package units1200
Package contents
UNSPSC39131706
BrandPIPELIFE
VendorPIPELIFE FINLAND OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)0.1507
GWP, unitMeter
Source for GWP dataEPD
