PUMP STATION PYRY 1000
Product code
4963700

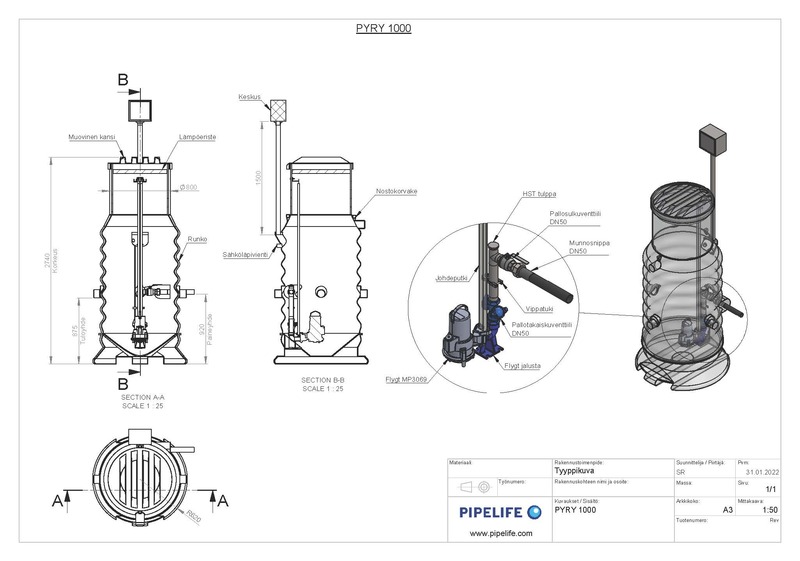

Pipelife Pyry 1000 property pump station is a wastewater pump station suitable for demanding applications such as water supply facilities. The primary application of the pump station is property-specific wastewater pumping. Up to 1-5 properties can be connected to the pump station. The Pyry pump station tank is manufactured in Finland. High-quality Flygt shredder pumps manufactured in Europe are available for the pump station. The pump station tank made of PE plastic is structurally very robust and highly resistant to wear. Pump control is implemented using float switches.
The pump station control unit can be mounted on a mounting post on the pump station lid or on a wall mounting frame (optional accessory) inside the property or in a street cabinet. The pump station control unit is equipped with an alarm light and a power outlet. The external diameter of the Pyry pump station is 1000 mm and the standard height is 2.6 meters.
Standard equipment includes a plastic cover and a cellular plastic insulation cover.
NOTE. The tank section of the Pyry pump station and the pump, control unit, and other accessories are sold as separate packages with their own product numbers. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Wastewater pump unit (EC010860)
Suitable for faecesyes
Number of pumps1
Rated voltage400 - 400 V
Outer pipe diameter connection outlet side63 mm
Flange compression stage connection outlet sidePN 10
Product codes
SAPCZN267
HPAC4963700
PLC4963700
GTIN/EAN9010459460011
Manufacturer part number70022901
Vendor material number70022901
Basic information
Package measurements (L x W x H)1040 x 1040 x 2740 mm
Package volume2963.584 l
Package weight130 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151510
BrandPIPELIFE
VendorPIPELIFE FINLAND OY
The country of origin stated by the supplierFinland
Documents (5)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)936.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000435
Manufacturer
NamePipelife Finland Oy
Postal addressKiviharjunlenkki 1 E, 90220 Oulu/Finland
