REGULATOR EXTENDER,2 INPUTS,BAT,MESH,BT

Extender (EXT-01) extends the range of the Plejd network. It also retains system timing functions, such as the astronomical timer, during a power outage due to an integrated backup power source (BAT-01). EXT-01 can wirelessly control one or more Plejd network units, for example via a button or rotary adapter (RTR). Settings are easily configured in the Plejd app. The battery lasts up to 10 years. Range is approximately 10 m indoors. Two wired inputs can be connected to a button, switch, or motion sensor. Features

• supply voltage: 230 V/50 Hz, maximum 0.02 A
• standby power consumption: 0.2 W
• operating temperature: -25 ... +35 °C
• battery life: 10 years of operation

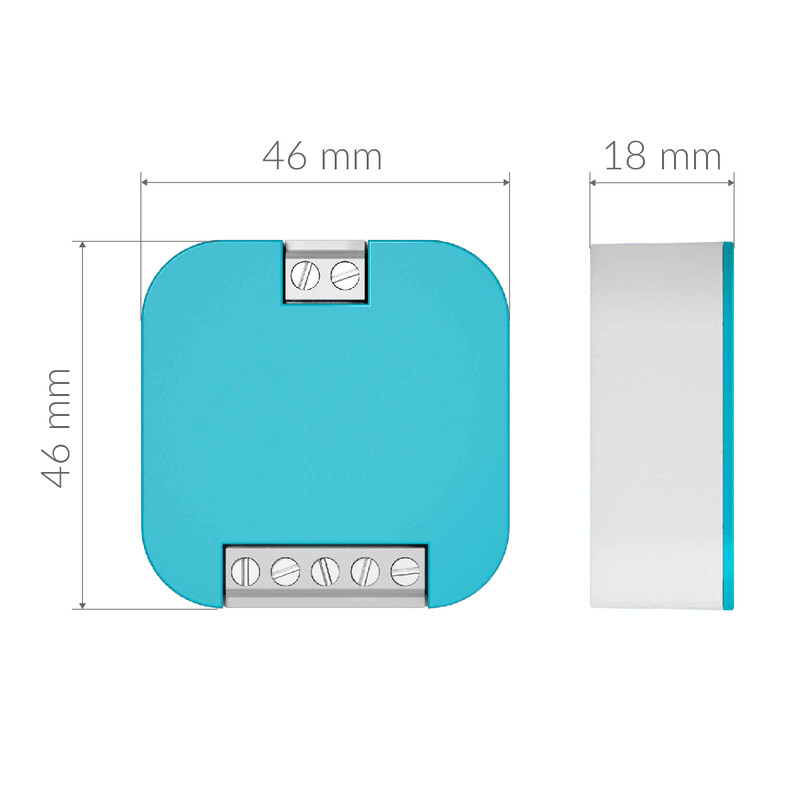

• dimensions: 46x46x18 mm
• wire terminal: connections: 0.5–4.0 mm2
• connections: 2.4 GHz mesh, Bluetooth®, <10 dBm
• range: approximately 10 m indoors; Plejd's mesh technology extends range as devices communicate with each other

The product is installed behind a button/covers, on a wall, or on a DIN rail using the mounting bracket MNT-01 (2618905, not included).

This product description is an automated translation of the original Finnish description.
