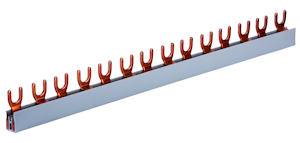

BUSBAR G-2L-1000/10 56-MOD 2-POLE
Product code
221.32.04
Cuttable busbar with fork design G-2L-1000/10. The cross-sectional area of the busbar is 10 mm². The busbar is 2-pole (L1 L2) and has 56 modules. The busbar has no end caps and its length is 1000 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Phase busbar (EC000215)
Number of phases2
Number of poles56
Suitable for number of devices56
Module width17.8 mm
Cross section10 mm²
Length1000 mm
Can be cut to sizeyes
Rated permanent current Iu100 A
Type of electric connectionFork
Insulatedyes
Rated surge voltage4 kV
Conditioned rated short-circuit current Iq50 kA
Max. rated operation voltage Ue500 V
Suitable for devices with N-conductorno
Suitable for devices with auxiliary switchno
Product codes
SAPASP102
PLC221.32.04
GTIN/EAN4025221009041
Manufacturer part number2213204
Vendor material number221.32.04
Basic information
Package measurements (L x W x H)1000 x 10 x 28 mm
Package volume0.28 l
Package weight0.314 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39121117
BrandPOLLMANN
VendorPOLLMANN ELEKTROTECHNIK GMBH
Documents (2)
Certificates
Brochures & documents
Environment and safety
Manufacturer
NamePollmann Elektrotechnik GmbH
Postal addressMittelweg 98, D-59302 Oelde
