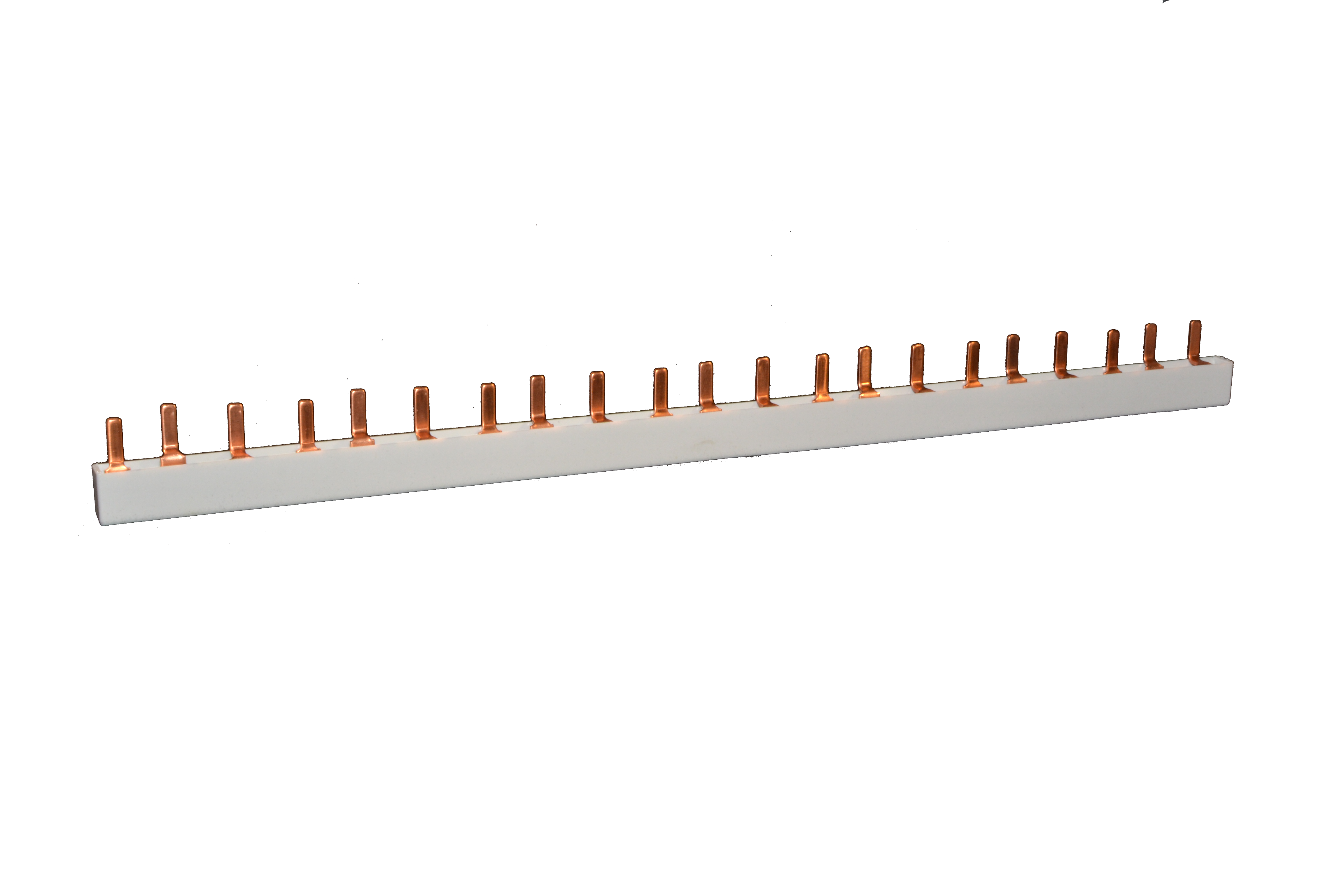

BUSBAR MINILINE S-3L-370 ML 10MM2 21-MOD 3-POL
Product code
3226505
Busbar type current rail MINILINE S-3L-370 ML. The cross-sectional area of the current rail is 10 mm². The current rail is 3-pole (L1 L2 L3) and has 21 modules. The current rail has end caps and its length is 370 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Phase busbar (EC000215)
Number of phases3
Number of poles21
Suitable for number of devices21
Module width17.8 mm
Cross section10 mm²
Length370 mm
Can be cut to sizeno
Rated permanent current Iu63 A
Type of electric connectionPin
Insulatedyes
Rated surge voltage4 kV
Conditioned rated short-circuit current Iq50 kA
Max. rated operation voltage Ue500 V
Suitable for devices with N-conductorno
Suitable for devices with auxiliary switchno
Product codes
SAPASP123
STK3226505
PLC3226505
GTIN/EAN4025221022071
Manufacturer part number222.73.24
Vendor material number222.73.24
Basic information
Package measurements (L x W x H)370 x 10 x 30 mm
Package volume0.111 l
Package weight0.144 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC39121117
BrandPOLLMANN
VendorPOLLMANN ELEKTROTECHNIK GMBH
