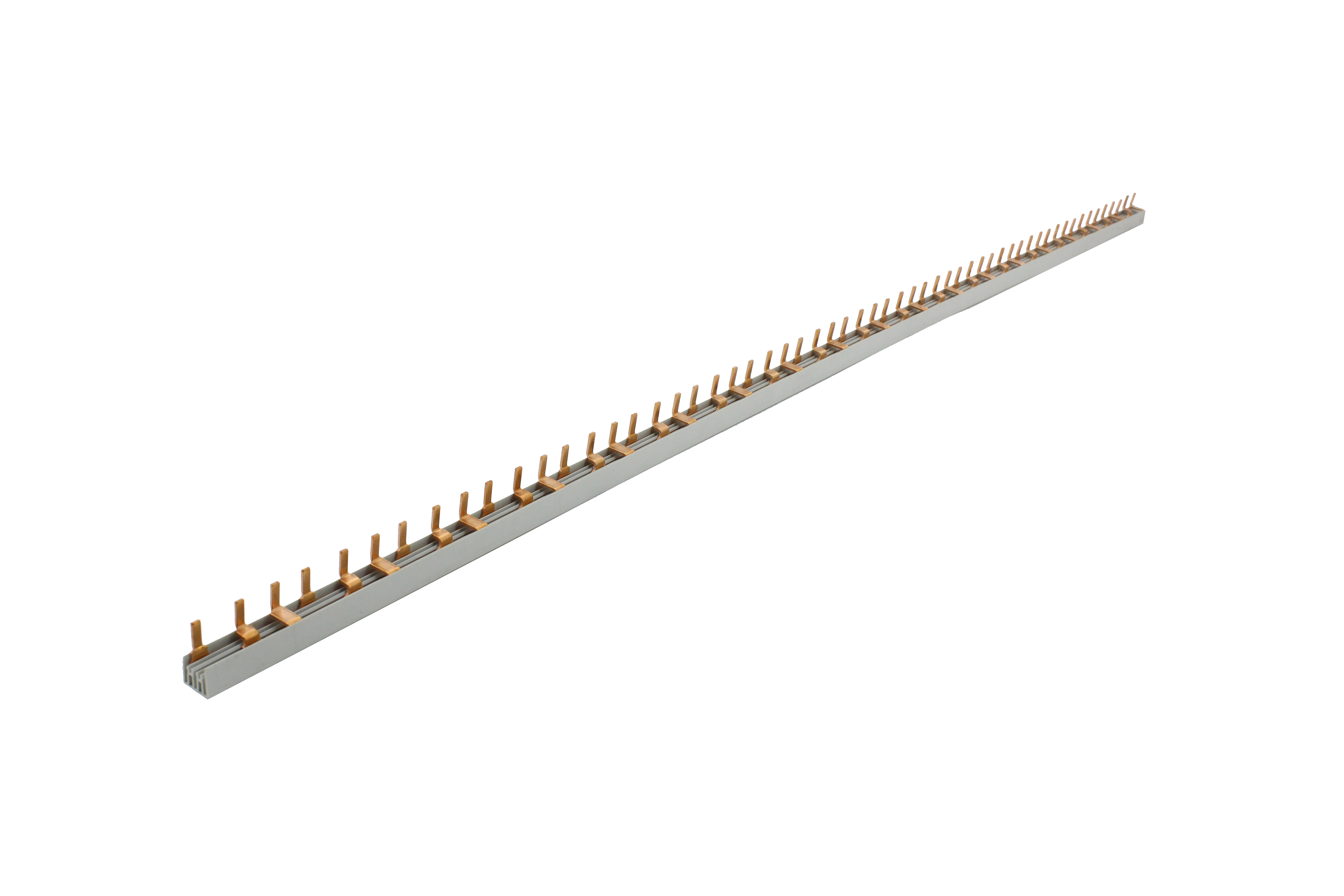

BUSBAR S-3L-1000/10 57-MOD 3-POLE
Product code
222.33.02
Terminal-style removable power rail S-3L-1000/10. The cross-sectional area of the power rail is 10 mm². The power rail is 3-pole (L1 L2 L3) and has 57 modules. The power rail has no end caps and its length is 1000 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Phase busbar (EC000215)
Number of phases3
Number of poles57
Suitable for number of devices57
Module width17.8 mm
Cross section10 mm²
Length1000 mm
Can be cut to sizeyes
Rated permanent current Iu100 A
Type of electric connectionPin
Insulatedyes
Rated surge voltage4 kV
Conditioned rated short-circuit current Iq50 kA
Max. rated operation voltage Ue500 V
Suitable for devices with N-conductorno
Suitable for devices with auxiliary switchno
Product codes
SAPASP096
PLC222.33.02
GTIN/EAN4025221013031
Manufacturer part number222.33.02
Vendor material number2223302
Basic information
Package measurements (L x W x H)1020 x 15 x 26 mm
Package volume0.398 l
Package weight0.425 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39121117
BrandPOLLMANN
VendorPOLLMANN ELEKTROTECHNIK GMBH
Documents (2)
Certificates
Brochures & documents
Environment and safety
Manufacturer
NamePollmann Elektrotechnik GmbH
Postal addressMittelweg 98, D-59302 Oelde
