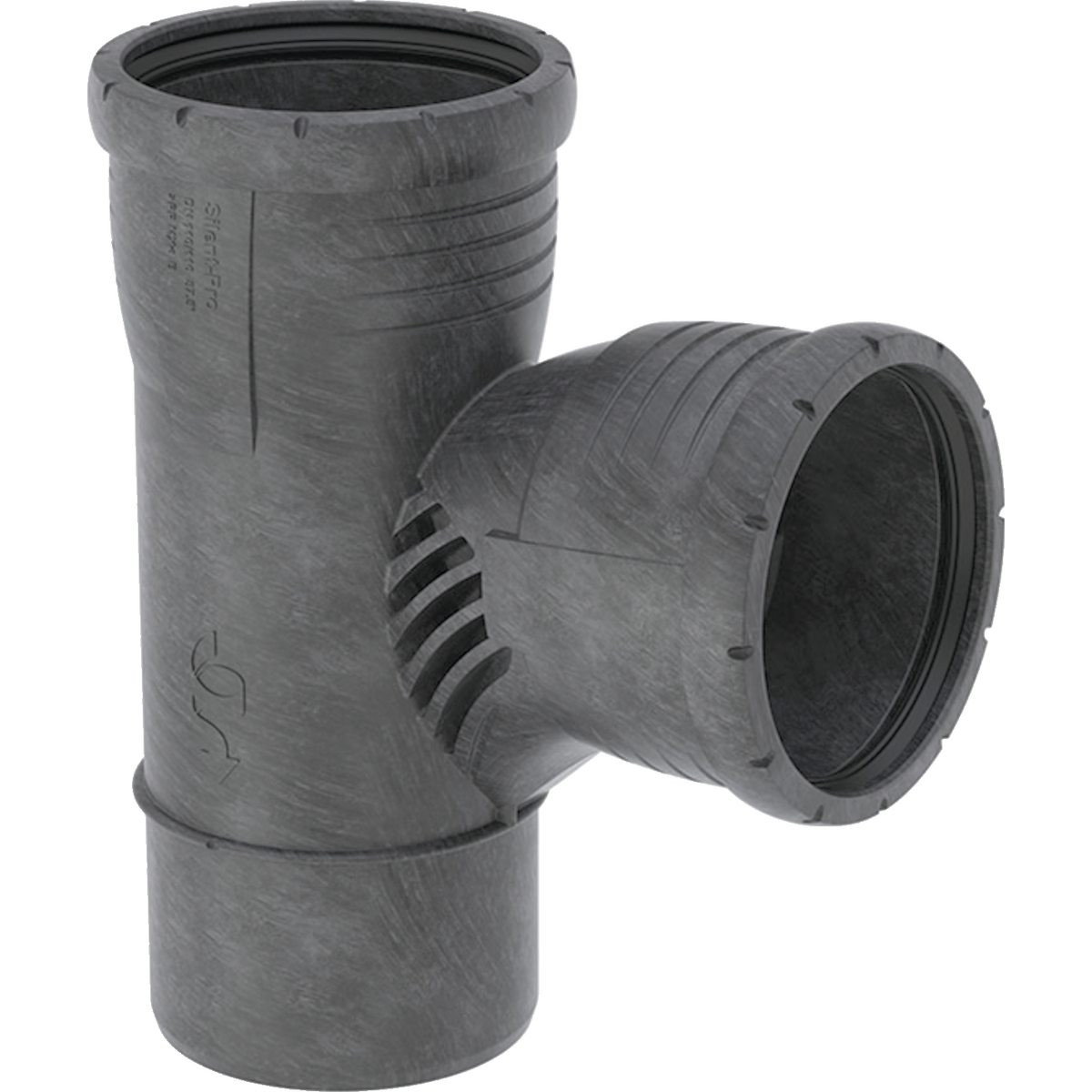

DB BRANCH FITTING SILENT-PRO CARVE 110X90X87,5 PP-MX
The Geberit Silent-Pro Carve branch fitting is part of the Geberit Silent-Pro SuperTube system, which also includes Silent-Pro BottomTurn base corners and Silent-Pro BackFlip corner fittings.
The new Geberit Silent-Pro SuperTube fittings enable drainage in multi-story buildings without prohibited connection areas. Pressure equalization branches are no longer required, and lateral transitions, d110 up to 6 meters or d90 up to 4 meters, can be installed without slope. The system saves space and creates new design possibilities.
The pipes and fittings of the Geberit Silent-Pro sound-insulated drainage system are made of mineral-reinforced polypropylene (PP-MX). Thanks to high specific gravity, thicker wall structure, optimized fitting design, and system supports, the system effectively dampens drainage noise. The Geberit Silent-Pro sound-insulated drainage system is easy and quick to install.
The high-quality EPDM seals of Geberit Silent-Pro fittings are extremely durable and long-lasting. The fitting design considers visible insertion depth, prevention of seal surface scratching, degree markings every 30°, grip ribs molded into the bottom of the fittings for easier handling, and a compact overall size. The system’s pipes can be stored outdoors for up to two years.
Dimensions of the Geberit Silent-Pro Carve branch fitting- d ř 110 mm
- d1 ř 90 mm
- DN 100/90
- angle 87.5°
