MEASURING INSTRUMENT ECO DVB-T/T2,-C/C2,-S/S2, FM

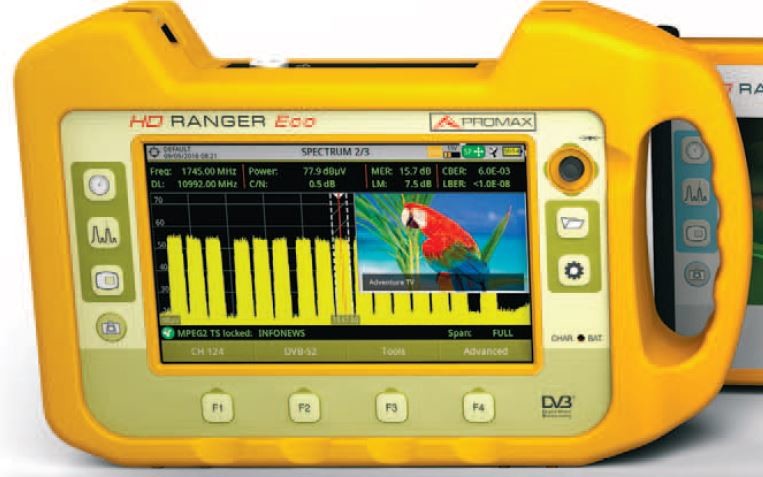

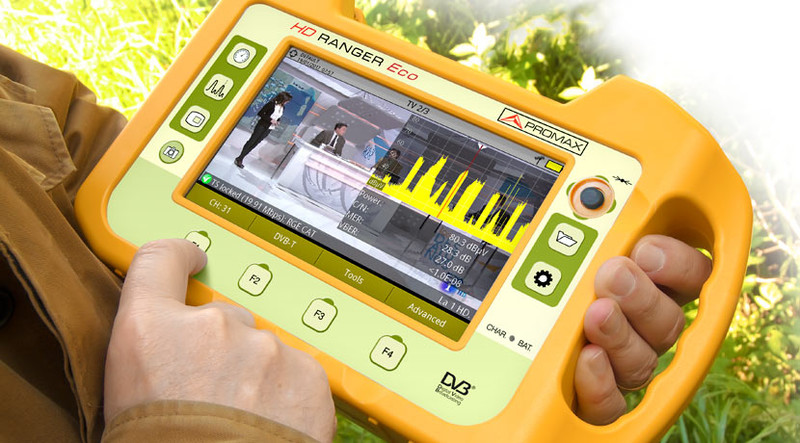

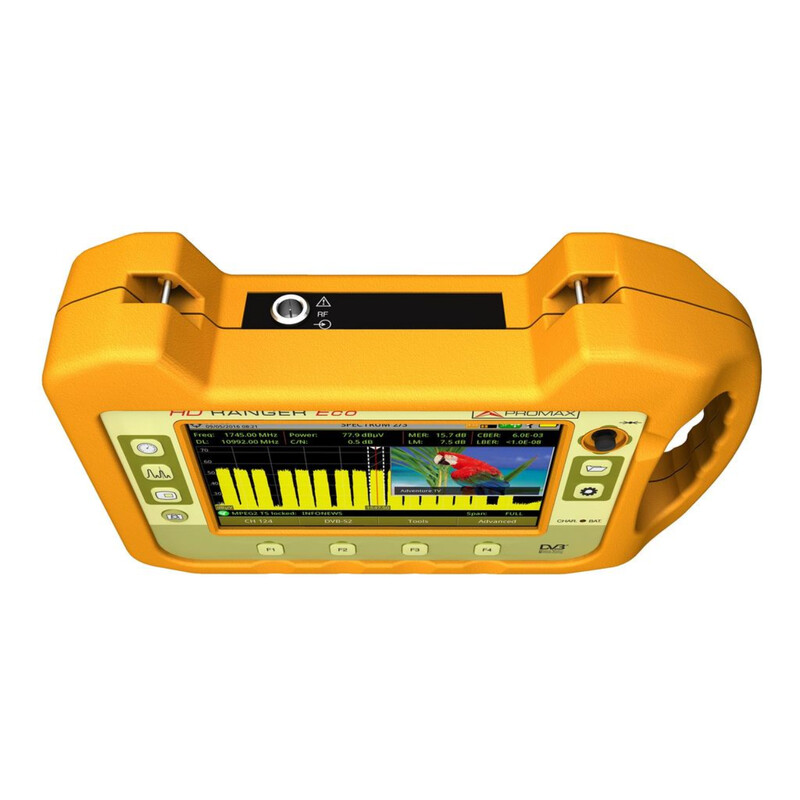

Promax HDRanger Eco is the most affordable entry-level field strength meter and spectrum analyzer.

HDRanger Eco is designed for installers who primarily perform basic installations requiring measurement of DVB-T/T2, DVB-C/C2, DVB-S/S2 signals.

A powerful and fast spectrum analyzer, clearly the best in its price class.

SPECIFICATIONS:
DIGITAL STANDARDS
- DVB-T, DVB-T2
- DVB-C, DVB-C2
- DVB-S, DVB-S2, DVB-S2 multistream
- DSS
VIDEO CODECS MPEG-2, MPEG-4 H.264
AUDIO CODECS MPEG-1, MPEG-2, HE-AAC

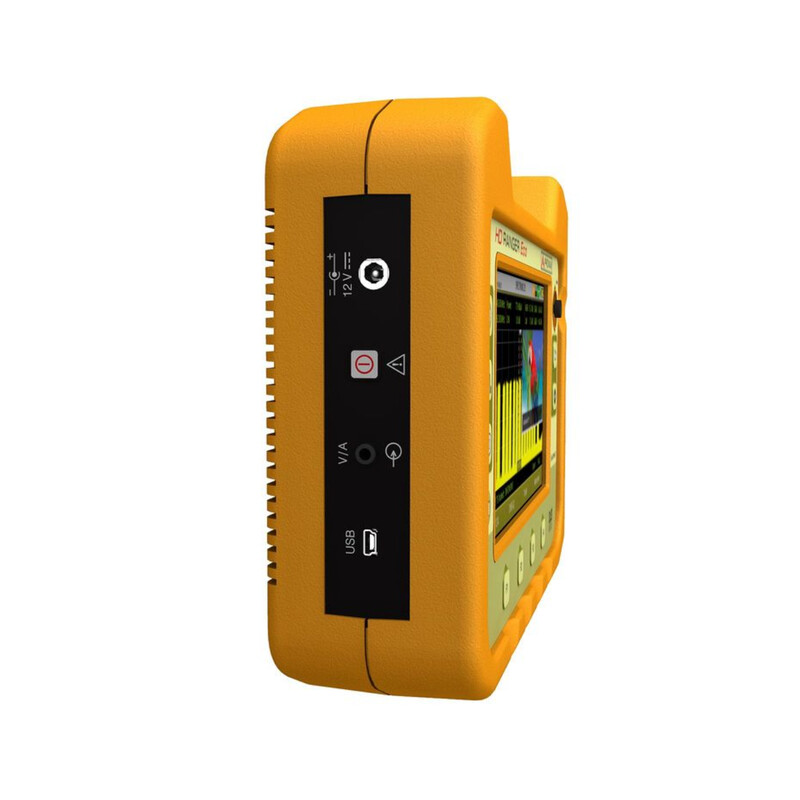

INPUTS AND OUTPUTS
- Universal RF connector 75 ?
- Analogue Video/Audio input
- USB for data transferring

FUNCTIONS
- Constellation diagram
- LTE
- Dynamic echoes analysis
- StealthID (instant identification of tuning parameters)
- PLS (Physical Layer Scrambling)
- Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
- FM radio measurements and decoding
- Screenshots and Datalogger for measurement reports
- DVB-S2 multistream
- Field strength
- Task planner

PC CONNECTION
- NetUpdate 4 (free software)
- Free and automatic firmware updates
- User customised channel plans
- Measurement reports and screenshots This product description is an automated translation of the original Finnish description.
