MEASURING INSTRUMENT TV EXPLORER NG

TV EXPLORER NG is a versatile and powerful field strength meter for antenna, cable, and satellite installations. It offers 4K support, ultra-fast spectrum analysis, automatic signal identification, comprehensive support for DVB standards, and optical power measurement all in one package. A customizable interface and touchscreen make operation fast and comfortable. TV EXPLORER NG is the perfect choice for professionals who need a reliable tool for everyday field work. Key Features

• Fast spectrum analysis (5-1000 MHz and 950-2150 MHz) simplifies interference detection.
• DVB-T2 support (the basic standard for Finland's antenna network). Full measurement parameters: MER, C/N, BER, Link Margin, echo analysis.
• 4K HEVC (H.265) video decoding. Displays the broadcast image directly on the meter, especially useful when a customer complains about picture quality.
• StealthID automatic signal identification. Identifies signal type and parameters without manual adjustment.
• MER by Carrier function. Reveals frequency-specific interferences and modulation errors that normal MER does not show.
• Analysis of dynamic echo delays (Echoes). Extremely useful for antenna alignment and diagnosing interference in SFN networks.
• Blind Scan. Finds satellite or terrestrial channels without a channel list, speeding up troubleshooting.
• Datalogger and automatic measurement reports. Ready-made reports for housing companies, contractors, and documentation.
• Constellation analysis (QPSK/8PSK/QAM/COFDM). Helps locate noise, interference, and weak connections.
• Channel list editing and custom channel plans. Practical for cable operators, housing companies, and test network maintenance.
• Integrated optical power measurement (FC/APC). Also functions as a meter for FTTH connections, eliminating the need for a separate optical power meter.
• WiFi 2.4 GHz analysis included as standard. View network channel load, signal levels, and potential sources of interference.
• Extensive support for cable and satellite standards (DVB-C/C2, DVB-S/S2). Suitable for measurements in cable housing companies and satellite system installations.
• DiSEqC, Unicable (EN50494), and dCSS (EN50607) support. Essential for modern satellite systems and multi-output LNB installations.

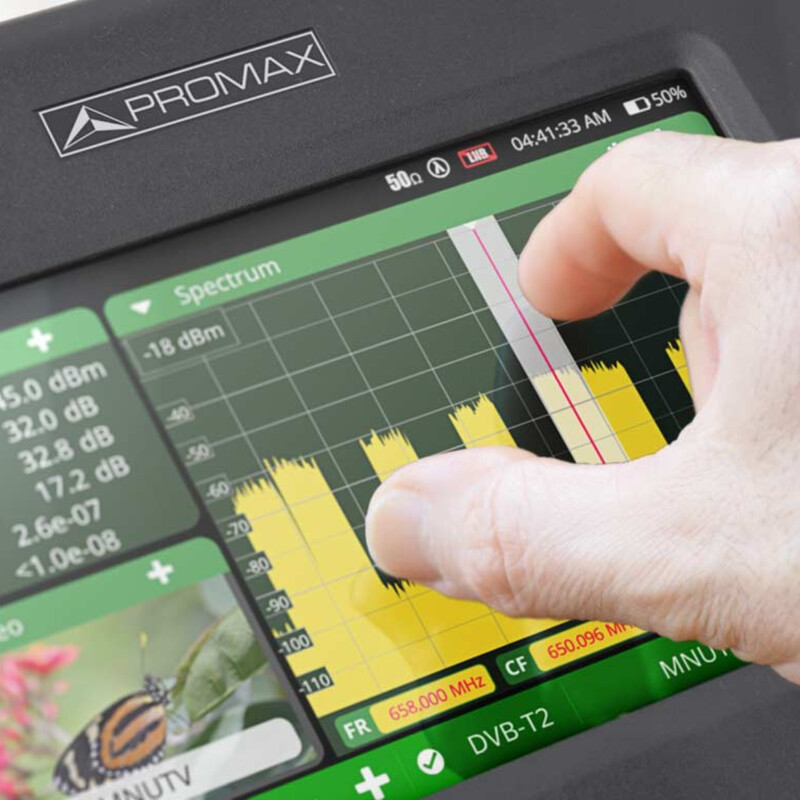

• 7" touchscreen and smartphone-like interface. Speeds up work; no button navigation required.
• Ultra-lightweight with protective case for field use. Easy to use on rooftops, masts, and during alignments.
• 4-hour smart battery + accurate remaining time display. A critical feature for field work where power outlets are not always available.

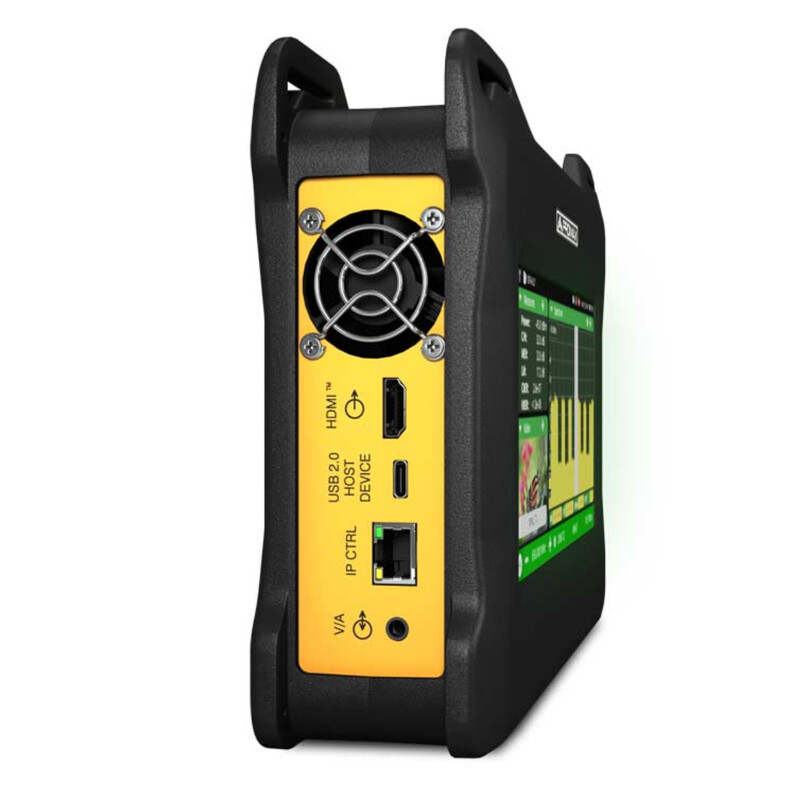

• HDMI output for displaying the image on a TV. Useful in customer and training situations.
• WebControl & Ethernet/USB. Remote control, screen management, and direct saving of measurements to a computer.
• Scalability: DAB/DAB+, FM Advanced, ATSC, optical FTTH measurement, GPS Drive Test. The meter does not become obsolete; features can be added as needed.

This product description is an automated translation of the original Finnish description.
