NOISE GENERATOR 1-2200 MHz, OUTPUT 80dBuv

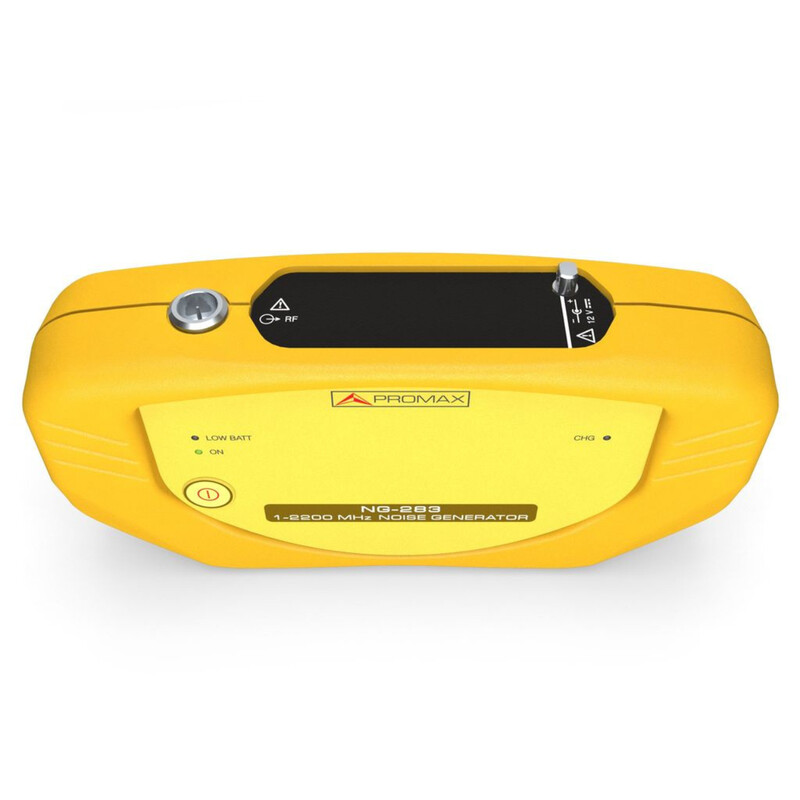

NG-283 is a compact, handheld noise generator designed for testing and analyzing coaxial networks and components. The flat RF noise signal produced by the noise generator can be used to test the internal network and its components. When used together with a spectrum analyzer or level meter (e.g., HDRanger+), the frequency response of the network or device under test can be measured in the range of 1-2200 MHz. Thanks to its wide frequency range, it is suitable for all applications. With a field strength meter/analyzer, characteristics such as attenuation in coaxial networks and the condition of active/passive components can be investigated. The device is battery-powered with a runtime of 5-8 hours. Included are a car charger cable, AC adapter, carrying case, and connector adapters.

TECHNICAL DATA:

• Frequency range: 1 – 2200 MHz
• Ripple: ± 2 dB
• Output level: 80 dB?V (-29 dBm) 8 MHz bandwidth / 75 ?
• Dimensions: 180×95×50 mm
• Weight: 500 g

Compatible battery: CB081 7557059 This product description is an automated translation of the original Finnish description.
