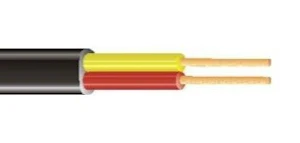

CAR CABLE AJMY 15X1,5 MU R50
Product code
0231495
Flexible plastic-insulated connection cable. For use at a maximum operating voltage of 75 V (DC), permanently or semi-permanently installed in vehicle electrical systems and for internal wiring or connections of other electrical equipment. Two-conductor cables are flat in external shape. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for moving application (EC003250)
Conductor materialCopper
Conductor surfaceBare
AWG sizeOther
Nominal cross section conductor1.5 mm²
Conductor categoryClass 5 = flexible
Conductor resistance at 20 °C13.3 Ohm/km
Number of cores15
Number of stranding elements1
Screen over stranding elementNone
Stranding elementNo
Screen over strandingNone
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2no
Core identificationColour
Product codes
SAPAEU760
STK0231495
PLC0231495
GTIN/EAN6410002314953
Manufacturer part number20075406
Vendor material number0231495
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.64 l
Package weight0.006 kg
Base unitMeter
Package units3000
Package contents–
UNSPSC26121613
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (2)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
