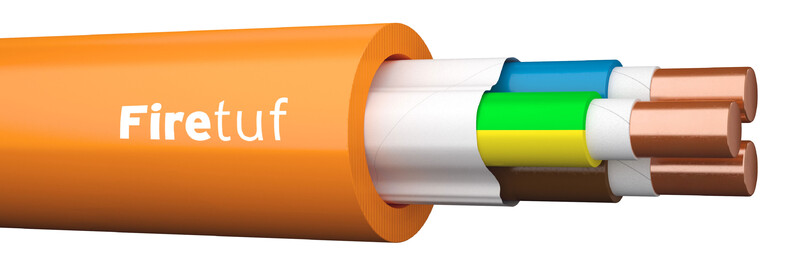

CONTROL CABLE-FR FIRETUF FRHF 750V 19x2,5 K500
Product code
0420393
As alarm, control, signaling, and power supply cables in installations where the safety of persons and equipment requires the cable to remain functional for a specified period during a fire. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C7.41 Ohm/km
Number of cores19
Twisted coresyes
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2no
Identification/coding colour coreOther
Core identificationNumbers
Core colourOther
With protective conductorno
Product codes
SAPCFH771
STK0420393
PLC0420393
GTIN/EAN6410004203934
Manufacturer part number0420393
Vendor material number0420393
Basic information
Package measurements (L x W x H)1000 x 22 x 22 mm
Package volume0.484 l
Package weight0.77 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121603
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
Documents (2)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
