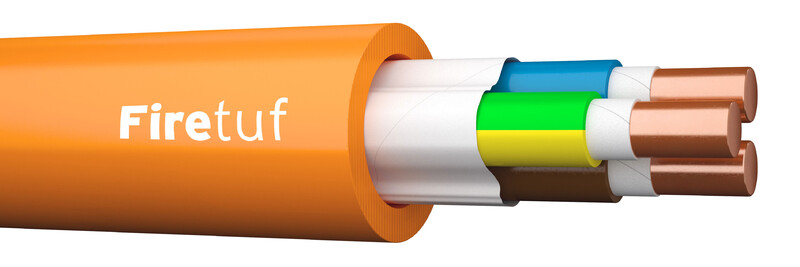

CONTROL CABLE-FRHF FIRETUF FRHF 750V 19x1,5
Product code
0420392
Used as an alarm, control, signaling, and power supply cable in installations where the safety of people and equipment requires the cable to remain functional for a specified period during a fire. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor1.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C12.1 Ohm/km
Number of cores19
Twisted coresyes
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2no
Identification/coding colour coreOther
Core identificationNumbers
Core colourOther
With protective conductorno
Product codes
SAPCZA805
STK0420392
PLC0420392
GTIN/EAN6410004203927
Manufacturer part numberF0420392E8
Vendor material number0420392
Basic information
Package measurements (L x W x H)1000 x 22 x 22 mm
Package volume0.484 l
Package weight0.6 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121641
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
Documents (2)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
