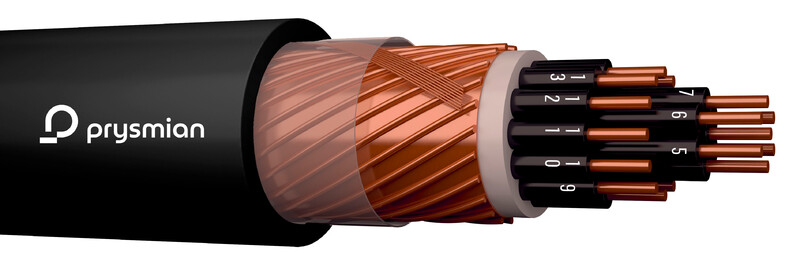

CONTROL CABLE-HF EMC MCCMO-HF C-PRo 19x2,5 K500 Cca
Product code
0602099
Cable for control, measurement, and signaling circuits of electrical equipment for fixed surface and flush mounting indoors and outdoors, as well as for underground installation. For applications requiring EMC-shielded cable. Also for applications requiring halogen-free, low-smoke, flame-retardant cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C7.41 Ohm/km
Number of cores20
Twisted coresyes
Material core insulationPolyolefin
Specification core insulationOther
Core identification according to HD 308 S2no
Identification/coding colour coreOther
Core identificationNumbers
Core colourOther
With protective conductoryes
Product codes
SAPCFH960
STK0602099
PLC0602099
GTIN/EAN6410006020997
Manufacturer part number0602099
Vendor material number0602099
Basic information
Package measurements (L x W x H)1000 x 24 x 24 mm
Package volume0.58 l
Package weight0.95 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121603
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
