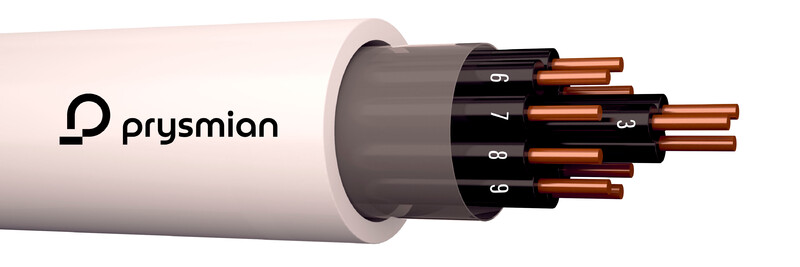

CONTROL CABLE-HF MMO-HF C-PRo 12x2,5 K500
Product code
0413023
Cables for control, measurement, and signaling circuits in fixed surface and flush installations indoors and outdoors. For applications requiring halogen-free, low-smoke, flame-retardant cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C7.41 Ohm/km
Number of cores12
Twisted coresyes
Material core insulationPolyolefin
Specification core insulationOther
Core identification according to HD 308 S2no
Identification/coding colour coreOther
Core identificationNumbers
Core colourOther
With protective conductorno
Product codes
SAPCEG262
STK0413023
PLC0413023
GTIN/EAN6410004130230
Manufacturer part number0413023
Vendor material number0413023
Basic information
Package measurements (L x W x H)1000 x 18 x 18 mm
Package volume0.324 l
Package weight0.5 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121603
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.2
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
