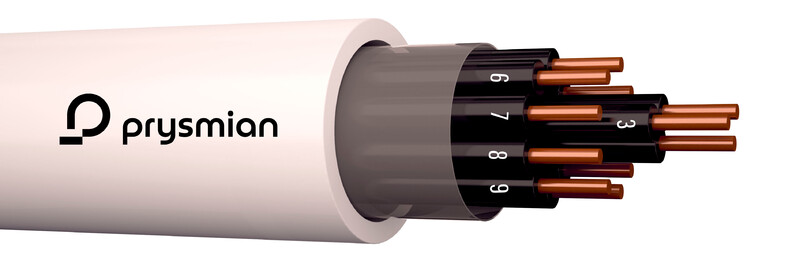

CONTROL CABLE MMO 19x1,5 K500
Product code
0412024
Cable for control, measurement, and signaling circuits of electrical equipment for surface and flush mounting indoors and outdoors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor1.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C12.1 Ohm/km
Number of cores19
Twisted coresyes
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2no
Identification/coding colour coreOther
Core identificationNumbers
Core colourOther
With protective conductorno
Product codes
SAPAAY062
STK0412024
PLC0412024
GTIN/EAN6410004120248
Manufacturer part number20076636
Vendor material number0412024
Basic information
Package measurements (L x W x H)1000 x 20 x 20 mm
Package volume0.4 l
Package weight0.49 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121603
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.136
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
