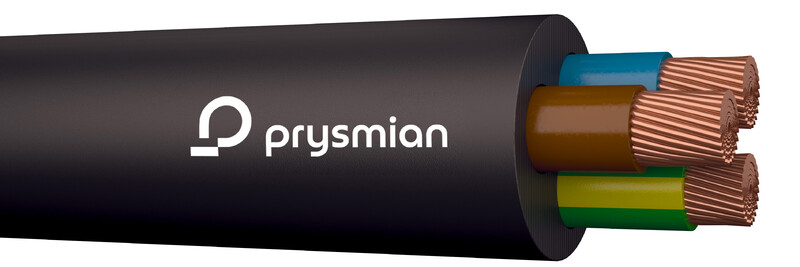

COPPER POWER CABLE-HF ACEFLEX-HF 3x2,5 S PK150 Dca
Product code
0401634
For fixed installation indoors and outdoors. Suitable for installation in confined spaces due to the cable and conductor's excellent flexibility. Also suitable for applications requiring halogen-free, low-smoke installation cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for moving application (EC003250)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
Number of cores3
Material outer sheathOther
Reaction-to-fire according to EN 13501-6: ClassDca
Reaction-to-fire according to EN 13501-6: Smoke productions2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesd2
Reaction-to-fire according to EN 13501-6: Aciditya2
Outer diameter approximate11.5 mm
Nominal voltage U0600 V
Nominal voltage U1000 V
Product codes
SAPDGX318
STK0401634
PLC0401634
GTIN/EAN6430065754947
Manufacturer part numberFIN0401634
Vendor material number0401634
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.373 l
Package weight0.203 kg
Base unitMeter
Package units150
Package contents–
UNSPSC26121629
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.2992
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
