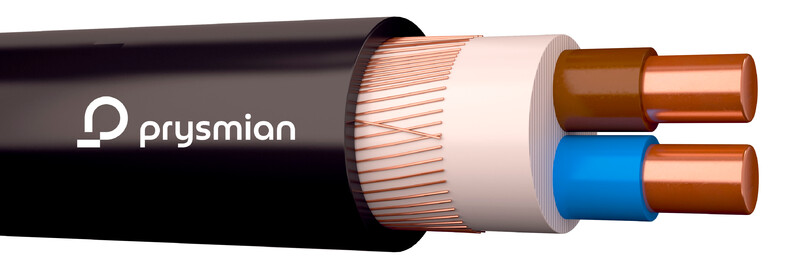

COPPER POWER CABLE- HF MCMK-HF C-PRo 2x2,5/2,5 R100
Product code
0602033
For fixed installation indoors, outdoors, and underground. For applications requiring halogen-free, low-smoke, flame-retardant cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable >= 1 kV, for permanent installation (EC003251)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C7.41 Ohm/km
Shape of conductorRound
Number of cores3
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2yes
Core identificationColour
Laminated sheathno
Fibre optic elementsno
With protective conductoryes
Product codes
SAPCEG280
STK0602033
PLC0602033
GTIN/EAN6410006020331
Manufacturer part number0602033
Vendor material number0602033
Basic information
Package measurements (L x W x H)1000 x 13 x 13 mm
Package volume0.169 l
Package weight0.22 kg
Base unitMeter
Package units100
Package contents–
UNSPSC26121629
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
