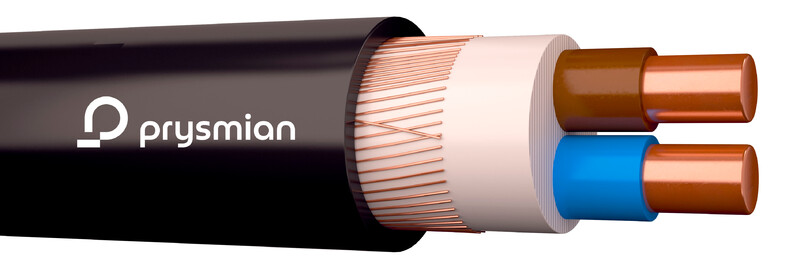

COPPER POWER CABLE MCMK 2x1,5+1,5 PK200
Product code
0602111
Domestic, high-quality Eca-class power cable suitable for fixed installation indoors, outdoors, and underground. The cable can also be installed directly into structures such as concrete pours.
Features
- 1 kV power cable
- touch protected
- round conductors
- fire protection compliant with EN 13501-6
Product details
Technical specifications
Product class (ETIM)Power cable >= 1 kV, for permanent installation (EC003251)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor1.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C12.1 Ohm/km
Shape of conductorRound
Number of cores3
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Core identificationColour
Laminated sheathno
Fibre optic elementsno
With protective conductoryes
Product codes
SAPABF012
STK0602111
PLC0602111
GTIN/EAN6410006021116
Manufacturer part number20075367
Vendor material number0602111
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.264 l
Package weight0.164 kg
Base unitMeter
Package units200 / 2400
Package contents–
UNSPSC26121629
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
