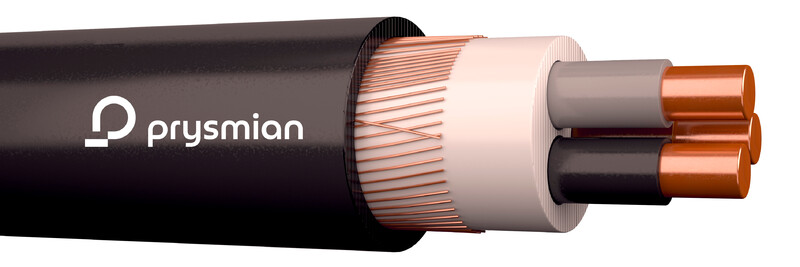

COPPER POWER CABLE MCMK 3x6+6 K500
Product code
0602155
Domestic, high-quality Eca-class power cable suitable for fixed installation indoors, outdoors, and underground. The cable can also be installed directly into structures such as concrete pours.
Features
- 1 kV power cable
- touch protected
- round conductors
- fire protection compliant with EN 13501-6
Product details
Technical specifications
Product class (ETIM)Power cable >= 1 kV, for permanent installation (EC003251)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor6 mm²
AWG sizeOther
Nominal cross section conductor (AWG)5.26 kcmil
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C3.08 Ohm/km
Shape of conductorRound
Number of cores4
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2yes
Core identificationColour
Laminated sheathno
Fibre optic elementsno
Product codes
SAPAAY217
STK0602155
PLC0602155
GTIN/EAN6410006021550
Manufacturer part number20076661
Vendor material number0602155
Basic information
Package measurements (L x W x H)1000 x 20 x 20 mm
Package volume0.4 l
Package weight0.49 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121629
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
