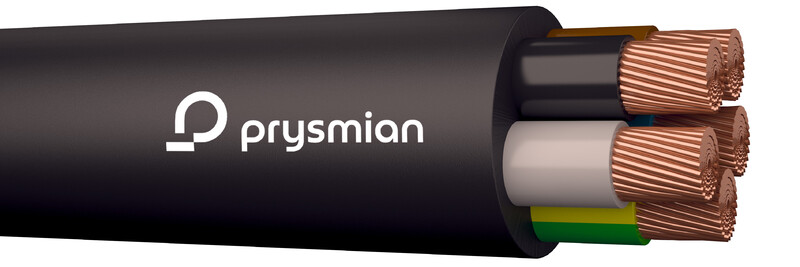

INSTALLATION CABLE-HF ACEFLEX-HF 5G2,5 1kV D500 Dca
Product code
0413085
For fixed installation indoors and outdoors. Suitable for installation in confined spaces due to the cable and conductor's excellent flexibility. Also suitable for applications requiring halogen-free, low-smoke installation cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for moving application (EC003250)
Conductor materialCopper
Conductor surfaceBare
AWG sizeOther
Nominal cross section conductor2.5 mm²
Conductor categoryClass 5 = flexible
Conductor resistance at 20 °C7.98 Ohm/km
Number of cores5
Number of stranding elements1
Screen over stranding elementNone
Stranding elementNo
Screen over strandingNone
Material core insulationPolyolefin
Specification core insulationPolyethylene (PE)
Core identification according to HD 308 S2yes
Core identificationColour
Product codes
SAPDEH752
STK0413085
PLC0413085
GTIN/EAN6430065755111
Manufacturer part numberFIN0413085E8
Vendor material number0413085
Basic information
Package measurements (L x W x H)1000 x 12 x 12 mm
Package volume0.144 l
Package weight0.24 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121641
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.536
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
