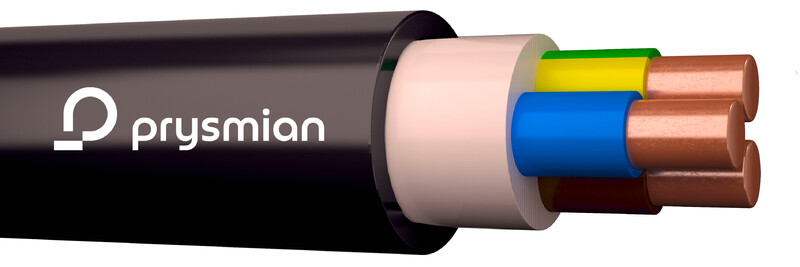

INSTALLATION CABLE-HF XMJ-HF 3x2,5 S BLACK D200 Dca
Product code
0413090
The cable is intended for fixed surface and flush installations indoors and outdoors. It is suitable for installation in masonry conduits. Refer to, for example, D1, Handbook of Electrical Installations in Buildings, section 522.11 and Figures 522.10 and 522.11.
Suitable for applications requiring halogen-free and low-smoke cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C7.41 Ohm/km
Number of cores3
Twisted coresyes
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2yes
Identification/coding colour coreOther
Core identificationColour
Core colourSeveral
With protective conductoryes
Product codes
SAPCPC000
STK0413090
PLC0413090
GTIN/EAN6410004130902
Manufacturer part numberFIN0413090E8
Vendor material number0413090
Basic information
Package measurements (L x W x H)1000 x 9 x 9 mm
Package volume0.081 l
Package weight0.14 kg
Base unitMeter
Package units200 / 2400
Package contents–
UNSPSC26121641
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.896
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
