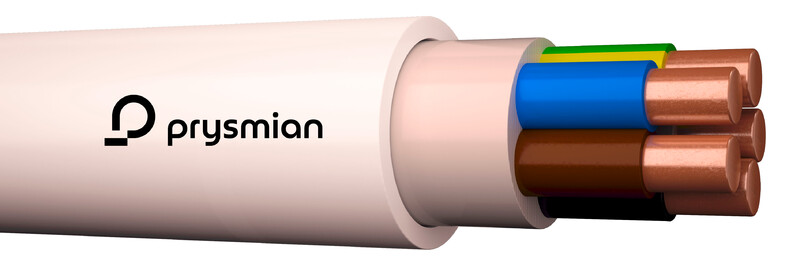

INSTALLATION CABLE MMJ 5x1,5 S K500
Product code
0456794
The cable is suitable for fixed surface and flush mounting indoors and outdoors. It can also be installed in a masonry groove.
Draka MMJ is a reliable and standards-compliant installation cable. It is self-extinguishing and certified to Eca fire classification. The cable fully meets all requirements of the MMJ standard (SFS 2091). The Linyl outer sheath is smooth, easy to install, and accelerates project completion. The cable is also easily stripped. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor1.5 mm²
AWG sizeOther
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C12.1 Ohm/km
Number of cores5
Twisted coresyes
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreOther
Core identificationColour
Core colourSeveral
With protective conductoryes
Product codes
SAPABM688
STK0456794
PLC0456794
GTIN/EAN6410004567944
Manufacturer part number20075558
Vendor material number0456794
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume1.28 l
Package weight0.212 kg
Base unitMeter
Package units1 / 500 / 500
Package contents–
UNSPSC26121641
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.3568
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
