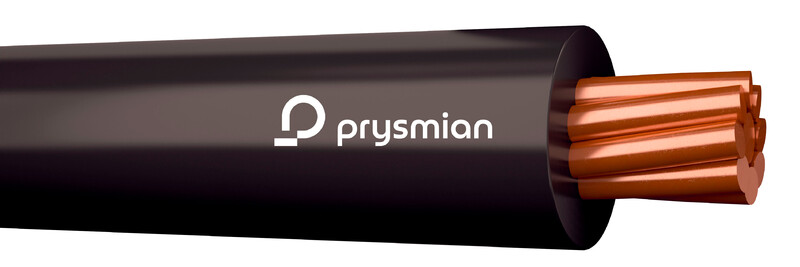

INSTALLATION LEAD MK 90 6 MUSTA R100
Product code
0402193
Suitable for fixed installation in conduit and internal wiring in devices and installations with a voltage of up to 1000 V (AC) or up to 750 V (DC) with respect to earth. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor6 mm²
AWG sizeOther
Diameter conductor3 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C3.08 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreBlack
Core identificationColour
Core colourBlack
Product codes
SAPAAX977
STK0402193
PLC0402193
GTIN/EAN6410004021934
Manufacturer part number20075795
Vendor material number0402193
Basic information
Package measurements (L x W x H)1000 x 4 x 1 mm
Package volume0.004 l
Package weight0.068 kg
Base unitMeter
Package units100 / 3000
Package contents–
UNSPSC26121641
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4352
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
