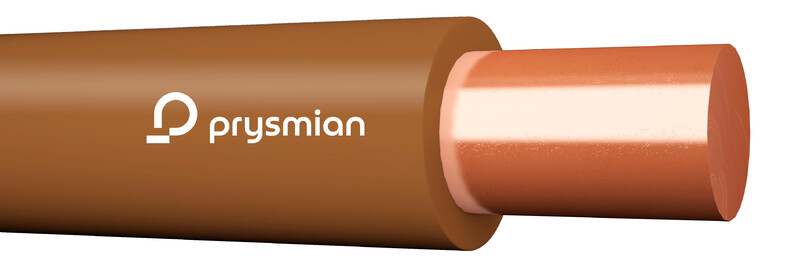

INSTALLATION LEAD ML 2,5 RUSKEA R200
Product code
0400822
For fixed installation in conduits and internal wiring in devices and installations with a voltage of up to 1000 V (AC) or up to 750 V (DC) against earth. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
AWG sizeOther
Diameter conductor2 mm
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C7.41 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreBrown
Core identificationColour
Core colourBrown
Product codes
SAPABB670
STK0400822
PLC0400822
GTIN/EAN6410004008225
Manufacturer part number20075025
Vendor material number0400822
Basic information
Package measurements (L x W x H)1000 x 3.3 x 3.3 mm
Package volume0.011 l
Package weight0.03 kg
Base unitMeter
Package units200 / 24000
Package contents–
UNSPSC26121641
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
