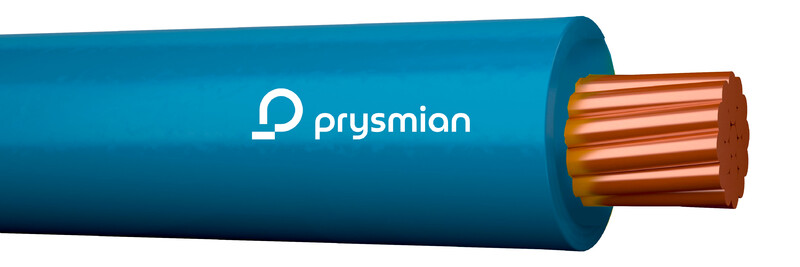

INSTALLATION WIRE-HF MK-HF C-PRo 25 SI K6M/500
Product code
0406234
Insulated halogen-free multicore conductor
Applications
- Fixed installation in conduits and internal wiring in devices and panels with voltage not exceeding 1000 V (AC) or 750 V (DC) relative to earth
- Applications requiring halogen-free, low-smoke, and flame-retardant cables
Phase identification
- Yellow-green (KEVI), black (MU), brown (RU), blue (SI) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor25 mm²
AWG sizeOther
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.727 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyolefin
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreBlue
Core identificationColour
Core colourBlue
With protective conductorno
Product codes
SAPCEG255
STK0406234
PLC0406234
GTIN/EAN6410004062340
Manufacturer part number0406234
Vendor material number0406234
Basic information
Package measurements (L x W x H)1000 x 10 x 10 mm
Package volume0.1 l
Package weight0.27 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121524
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.728
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
