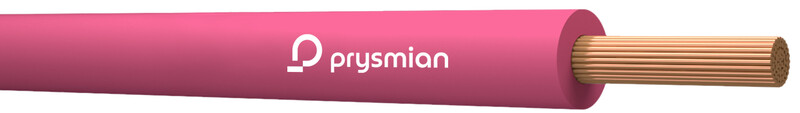

INSTALLATION WIRE-HF MK-HF C-PRo 6 PINK R100 Cca
Product code
0401616
Halogen-free insulated multi-core cable. Suitable for fixed installation in conduit and internal wiring in equipment and switchgear (e.g. SFS-EN 60439-1, clause 7.5.5), where the nominal voltage does not exceed 1000 V (AC) or 750 V (DC) with respect to earth. Used in applications requiring low-smoke, halogen-free, and flame-retardant cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor6 mm²
AWG sizeOther
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C3.08 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyolefin
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour corePink
Core identificationColour
Core colourPink
With protective conductorno
Product codes
SAPDGV060
STK0401616
PLC0401616
GTIN/EAN6430010758761
Manufacturer part numberFIN0401616E8
Vendor material number0401616
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.044 l
Package weight0.063 kg
Base unitMeter
Package units100 / 3000
Package contents–
UNSPSC26121524
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4032
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
