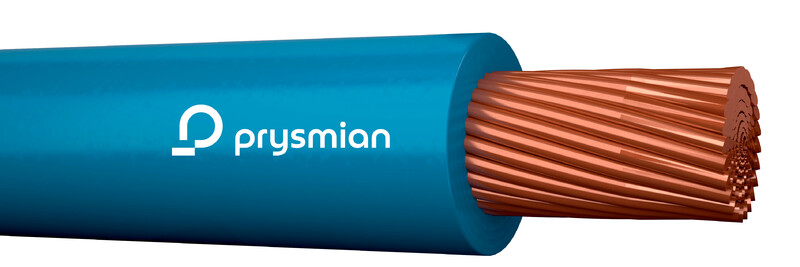

INSTALLATION WIRE-HF MKEM-HF C-PRo 50 SI K6M/500
Product code
0406289
For fixed installation in conduits and internal wiring in devices and panels with a voltage of up to 1000 V (AC) or up to 750 V (DC) to earth. For applications requiring halogen-free, low-smoke, flame-retardant cables. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor50 mm²
AWG sizeOther
Conductor categoryClass 5 = flexible
Conductor resistance at 20 °C0.386 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyolefin
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreBlue
Core identificationColour
Core colourBlue
With protective conductorno
Product codes
SAPCEG238
STK0406289
PLC0406289
GTIN/EAN6410004062890
Manufacturer part number0406289
Vendor material number0406289
Basic information
Package measurements (L x W x H)1000 x 13 x 13 mm
Package volume0.169 l
Package weight0.48 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121524
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.072
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
