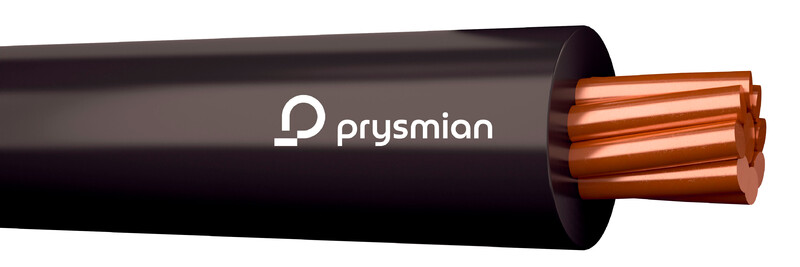

INSTALLATION WIRE MK 90 6 RU R100 Eca
Product code
0402192
Suitable for fixed installation in conduit and internal wiring in devices and installations with a voltage of up to 1000 V (AC) or up to 750 V (DC) with respect to earth. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor6 mm²
AWG sizeOther
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C3.08 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreBrown
Core identificationColour
Core colourBrown
With protective conductorno
Product codes
SAPCZA798
STK0402192
PLC0402192
GTIN/EAN6410004021927
Manufacturer part numberFI0402192E8
Vendor material number0402192
Basic information
Package measurements (L x W x H)1000 x 5 x 5 mm
Package volume0.025 l
Package weight0.07 kg
Base unitMeter
Package units100 / 3000
Package contents–
UNSPSC26121641
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.448
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
