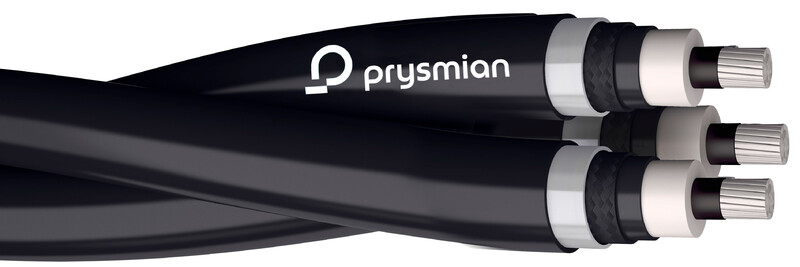

POWER CABLE 20KV AHXAMK-WP 3X150AL K500
Product code
0624231
Aluminum conductor, PEX insulated and watertight Wiski Plain® underground cable for ground installations. The product can also be installed by trenching. In addition, the cable is suitable for fixed shelf and conduit installations indoors and outdoors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable >= 1 kV, for permanent installation (EC003251)
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor150 mm²
AWG sizeOther
Diameter conductor14.1 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.206 Ohm/km
Shape of conductorRound
Number of cores3
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2no
Core identificationNone
Laminated sheathyes
Fibre optic elementsno
Product codes
SAPALP651
STK0624231
PLC0624231
GTIN/EAN6410006242313
Manufacturer part number20022505
Vendor material number0624231
Basic information
Package measurements (L x W x H)1000 x 80 x 80 mm
Package volume3.32 l
Package weight3.32 kg
Base unitMeter
Package units1 / 510
Package contents–
UNSPSC26121629
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (2)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
