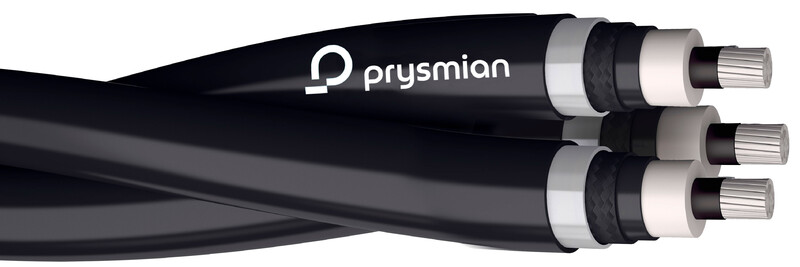

POWER CABLE 20KV AHXAMK-WP 3X50AL K500
Product code
0624227
Aluminum conductor, PEX insulated and watertight Wiski Plain® underground cable for ground installations. The product can also be installed by trenching. In addition, the cable is suitable for fixed shelf and conduit installations indoors and outdoors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable >= 1 kV, for permanent installation (EC003251)
Conductor materialAluminium
Conductor surfaceBare
Nominal cross section conductor50 mm²
AWG sizeOther
Diameter conductor8 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.641 Ohm/km
Shape of conductorRound
Number of cores3
Material core insulationPolyolefin
Specification core insulationCrosslinked polyethylene (XLPE)
Core identification according to HD 308 S2no
Core identificationNone
Laminated sheathyes
Fibre optic elementsno
Product codes
SAPALP649
STK0624227
PLC0624227
GTIN/EAN6410006242276
Manufacturer part number20022503
Vendor material number0624227
Basic information
Package measurements (L x W x H)1000 x 61 x 61 mm
Package volume3.721 l
Package weight2.05 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121629
BrandPRYSMIAN
VendorPRYSMIAN GROUP FINLAND OY
The country of origin stated by the supplierFinland
Documents (2)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Manufacturer
NamePrysmian Group Finland Oy
Websitehttps://fi.prysmian.com
Postal addressPL 13, 02401 Kirkkonummi, Finland
